SA5534A, SA5534 Low-Noise Operational Amplifiers

SA5534A Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community NE5534, NE5534A, SA5534, SA5534A SLOS070D * JULY 197.
The NE5534, NE5534A, SA5534, and SA5534A devices are high-performance operational amplifiers combining excellent dc and ac characteristics.

SA5534A Features

* 1 Equivalent Input Noise Voltage 3.5 nV/√Hz Typ
* Unity-Gain Bandwidth 10 MHz Typ
* Common-Mode Rejection Ratio 100 dB Typ
* High DC Voltage Gain 100 V/mV Typ
* Peak-to-Peak Output Voltage Swing 32 V Typ With VCC± = ±18 V and RL = 600 Ω
* High Slew Ra

SA5534A Applications

* Audio Preamplifiers
* Servo Error Amplifiers
* Medical Equipment

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SA5534A, SA5534. Please refer to the document for exact specifications by model.

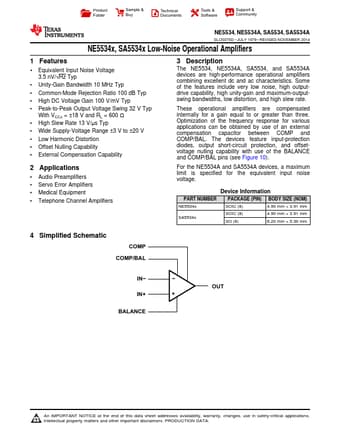

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA5534A, SA5534
Manufacturer
Texas Instruments ↗
File Size
894.44 KB
Datasheet
SA5534-etcTI.pdf
Description
Low-Noise Operational Amplifiers
Note
This datasheet PDF includes multiple part numbers: SA5534A, SA5534.
Please refer to the document for exact specifications by model.
