RC4558D - Dual General-Purpose Operational Amplifier

Download the RC4558D datasheet PDF. This datasheet also covers the RC4558 variant, as both devices belong to the same dual general-purpose operational amplifier family and are provided as variant models within a single manufacturer datasheet.

Description

The RC4558 device is a dual general-purpose operational amplifier.

The combination of the wide supply voltage range (10V to 30V), low noise (6.5nV/ √Hz), and distortion performance (0.0001% THD+N) of the device allow the RC4558 to be used in various audio applications.

Features

  • Wide common-mode and differential voltage ranges.
  • No frequency compensation required.
  • Low power consumption.
  • No latch-up.
  • Gain bandwidth product: 4MHz typical.
  • Gain and phase match between amplifiers.
  • Low noise: 6.5nV/√Hz typical at 10kHz.
  • Low distortion and noise: 0.0001% at 1kHz 2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (RC4558-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
RC4558 Dual High-Gain Operational Amplifier Fairchild Semiconductor
RC4556 High Output Current Dual Operational Amplifier Raytheon
RC4559 Dual High-Gain Operational Amplifier Fairchild Semiconductor
RC4001_L LCD OKAYA
RC4002_B LCD OKAYA

Other Datasheets by Texas Instruments

Part Number Description
RC4558 Dual General-Purpose Operational Amplifier
RC4558P Dual General-Purpose Operational Amplifier
RC4559 Dual High-Performance Operational Amplifier
RC4560 DUAL AUDIO OPERATIONAL AMPLIFIER
RC4580 Dual Audio Operational Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

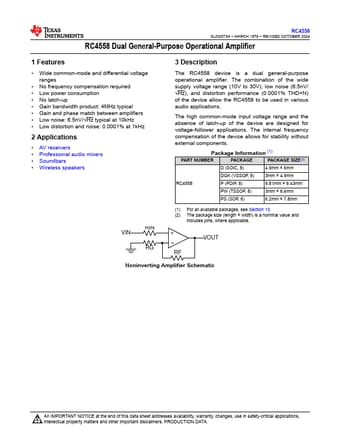

RC4558 SLOS073H – MARCH 1976 – REVISED OCTOBER 2024 RC4558 Dual General-Purpose Operational Amplifier 1 Features • Wide common-mode and differential voltage ranges • No frequency compensation required • Low power consumption • No latch-up • Gain bandwidth product: 4MHz typical • Gain and phase match between amplifiers • Low noise: 6.5nV/√Hz typical at 10kHz • Low distortion and noise: 0.0001% at 1kHz 2 Applications • AV receivers • Professional audio mixers • Soundbars • Wireless speakers RIN VIN RG 3 Description The RC4558 device is a dual general-purpose operational amplifier. The combination of the wide supply voltage range (10V to 30V), low noise (6.5nV/ √Hz), and distortion performance (0.0001% THD+N) of the device allow the RC4558 to be used in various audio applications.
