PTH03020W - 3.3-V Input Non-Isolated Wide-Output Adjust Power Module

Texas Instruments

📥 Download Datasheet

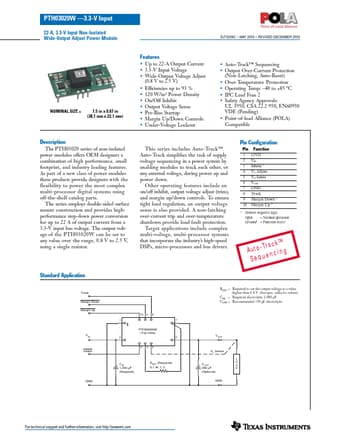

PTH03020W Datasheet Preview — Preview of PTH03020W PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PTH03020W
Manufacturer	Texas Instruments
File Size	427.87 KB
Description	3.3-V Input Non-Isolated Wide-Output Adjust Power Module
Datasheet	PTH03020W-etcTI.pdf

PTH03020W Product details

Description

The PTH03020 series of non-isolated power modules offers OEM designers a combination of high performance, small footprint, and industry leading

Features

Up to 22-A Output Current.
3.3-V Input Voltage.
Wide-Output Voltage Adjust (0.8 V to 2.5 V).
Efficiencies up to 93 %.
120 W/in³ Power Density.
On/Off Inhibit.
Output Voltage Sense.
Pre-Bias Startup.
Margin Up/Down Controls.
Under-Voltage Lockout.
Auto-Track™ Sequencing.
Output Over-Current Protection (Non-Latching, Auto-Reset).
Over-Temperature Protection.
Operating Tem.
