PCA9517 - Level-Translating I2C Bus Repeater

Texas Instruments

📥 Download Datasheet

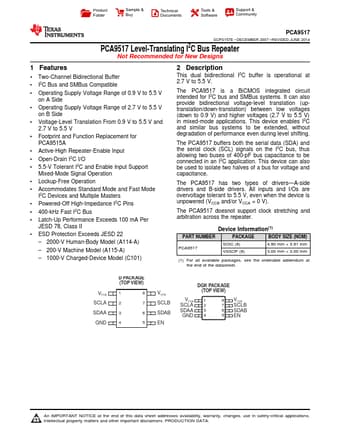

PCA9517 Datasheet Preview — Preview of PCA9517 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PCA9517
Manufacturer	Texas Instruments
File Size	1.06 MB
Description	Level-Translating I2C Bus Repeater
Datasheet	PCA9517-etcTI.pdf

PCA9517 Product details

Description

This dual bidirectional I2C buffer is operational at 2.7 V to 5.5 V.

Features

1 Two-Channel Bidirectional Buffer.
I2C Bus and SMBus Compatible.
Operating Supply Voltage Range of 0.9 V to 5.5 V on A Side.
Operating Supply Voltage Range of 2.7 V to 5.5 V on B Side.
Voltage-Level Translation From 0.9 V to 5.5 V and 2.7 V to 5.5 V.
Footprint and Function Replacement for PCA9515A.
Active-High Repeater-Enable Input.
Open-Drain I2C I/O.
5.5-V Tolerant I2C and Enable Input Support Mixed-Mode Signal O.
