OPA836 - OPERATIONAL AMPLIFIER

General Description

The OPA836 and OPA2836 devices (OPAx836) are single- and dual-channel, ultra-low power, rail-to-rail output, negative-rail input, voltage-feedback (VFB) operational amplifiers designed to operate over a power-supply range of 2.5 V to 5.5 V with a single supply, or ±1.25 V to ±2.75 V with a dual supp

Key Features

  • 1 Low Power:.
  • Supply Voltage: 2.5 V to 5.5 V.
  • Quiescent Current: 1 mA (Typical).
  • Power Down Mode: 0.5 µA (Typical).
  • Bandwidth: 205 MHz.
  • Slew Rate: 560 V/µs.
  • Rise Time: 3 ns (2 VSTEP).
  • Settling Time (0.1%): 22 ns (2 VSTEP).
  • Overdrive Recovery Time: 60 ns.
  • SNR: 0.00013% (.
  • 117.6 dBc) at 1 kHz (1 VRMS).
  • THD: 0.00003% (.
  • 130 dBc) at 1 kHz (1 VRMS).
  • HD2/HD3:.
  • 85 dBc/.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OPA830 Low-Power / Single-Supply / Wideband Operational Amplifier Burr-Brown
OPA832 Low-Power / Single-Supply / Fixed-Gain Video Buffer Amplifier Burr-Brown
OPA820 Low-Power / Single-Supply / Wideband Operational Amplifier Burr-Brown
OPA827 OPERATIONAL AMPLIFIER Burr-Brown
OPA843 Wideband / Low Distortion / Medium Gain / Voltage-Feedback OPERATIONAL AMPLIFIER Burr-Brown

Other Datasheets by Texas Instruments

Part Number Description
OPA830 OPERATIONAL AMPLIFIER
OPA830-EP OPERATIONAL AMPLIFIER
OPA832 Video Buffer Amplifier
OPA835 VFB Op Amp
OPA837 Voltage-Feedback Op Amp

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

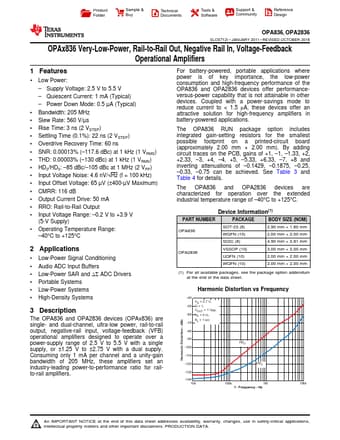

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design OPA836, OPA2836 SLOS712I – JANUARY 2011 – REVISED OCTOBER 2016 OPAx836 Very-Low-Power, Rail-to-Rail Out, Negative Rail In, Voltage-Feedback Operational Amplifiers 1 Features •1 Low Power: – Supply Voltage: 2.5 V to 5.5 V – Quiescent Current: 1 mA (Typical) – Power Down Mode: 0.5 µA (Typical) • Bandwidth: 205 MHz • Slew Rate: 560 V/µs • Rise Time: 3 ns (2 VSTEP) • Settling Time (0.1%): 22 ns (2 VSTEP) • Overdrive Recovery Time: 60 ns • SNR: 0.00013% (–117.6 dBc) at 1 kHz (1 VRMS) • THD: 0.00003% (–130 dBc) at 1 kHz (1 VRMS) • HD2/HD3: –85 dBc/–105 dBc at 1 MHz (2 VPP) • Input Voltage Noise: 4.
