OPA637, OPA627 High-Speed JFET Operational Amplifiers

OPA637 Description

OPA627, OPA637 SBOS165C * AUGUST 2000 * REVISED JANUARY 2025 OPA6x7 Precision, High-Speed JFET Operational Amplifiers 1 .
The OPA627 and OPA637 (OPA6x7) operational amplifiers (op amps) provide a new level of performance in a precision FET operational amplifier.

OPA637 Features

* Very low noise: 4.5nV/√Hz at 10kHz
* Fast settling time:
* OPA627: 550ns to 0.01%
* OPA637: 450ns to 0.01%
* Low VOS: 100µV maximum
* Low drift: 0.8µV/°C maximum
* Low IB: 5pA maximum
* Gain options:
* OPA627: Unity-gain stabl

OPA637 Applications

* Precision instrumentation
* Fast data acquisition
* DAC output amplifier
* Optoelectronics
* Sonar, ultrasound
* High-impedance sensor amps
* High-performance audio circuitry
* Active filters Input R4 2.94k R1 590¡ R3 499¢ C2 39nF

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OPA637, OPA627. Please refer to the document for exact specifications by model.

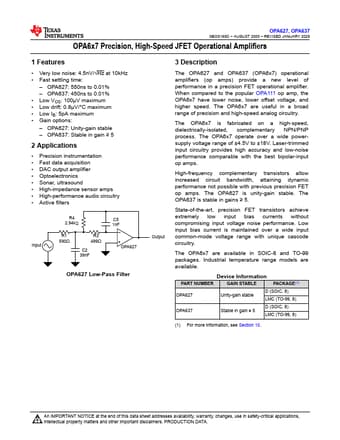

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OPA637, OPA627
Manufacturer
Texas Instruments ↗
File Size
1.49 MB
Datasheet
OPA627-etcTI.pdf
Description
High-Speed JFET Operational Amplifiers
Note
This datasheet PDF includes multiple part numbers: OPA637, OPA627.
Please refer to the document for exact specifications by model.
