OPA4325 - CMOS Operational Amplifier

Product Overview

Texas Instruments

Datasheet Details

Part number	OPA4325
Manufacturer	Texas Instruments
File Size	3.06 MB
Description	CMOS Operational Amplifier
Datasheet	OPA4325 Datasheet
Note	This datasheet PDF includes multiple part numbers: OPA4325, OPA325. Please refer to the document for exact specifications by model.

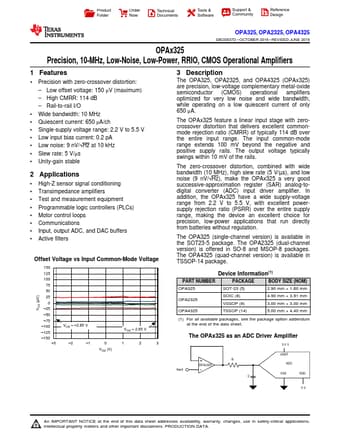

Additional preview pages of the OPA4325 datasheet.

Product details

Description

The OPA325, OPA2325, and OPA4325 (OPAx325) are precision, low-voltage complementary metal-oxide semiconductor (CMOS) operational amplifiers optimized for very low noise and wide bandwidth, while operating on a low quiescent current of only 650 μA.

Features

1 Precision with zero-crossover distortion:.
Low offset voltage: 150 μV (maximum).
High CMRR: 114 dB.
Rail-to-rail I/O.
Wide bandwidth: 10 MHz.
Quiescent current: 650 μA/ch.
Single-supply voltage range: 2.2 V to 5.5 V.
Low input bias current: 0.2 pA.
Low noise: 9 nV/√Hz at 10 kHz.
Slew rate: 5 V/μs.
Unity-gain stable 2.
