OPA354A-Q1 - CMOS Operational Amplifier

General Description

The design of the OPAx354-Q1 family of high-speed, voltage-feedback CMOS operational amplifiers is for video and other applications requiring wide bandwidth.

These devices are unity-gain stable and can drive large output currents.

Differential gain is 0.02% and differential phase is 0.09°.

Key Features

  • 1 Qualified for Automotive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OPA350 OPERATIONAL AMPLIFIER Burr-Brown
OPA353 OPERATIONAL AMPLIFIER Burr-Brown
OPA355 3V Video Amplifier Burr-Brown
OPA356 200MHz / CMOS OPERATIONAL AMPLIFIER Burr-Brown
OPA357 CMOS Operational Amplifier Burr-Brown

Other Datasheets by Texas Instruments

Part Number Description
OPA354 CMOS Operational Amplifier
OPA350 Operational Amplifier
OPA355 CMOS Operational Amplifier
OPA355-Q1 CMOS Operational Amplifier
OPA356-Q1 CMOS Operational Amplifier

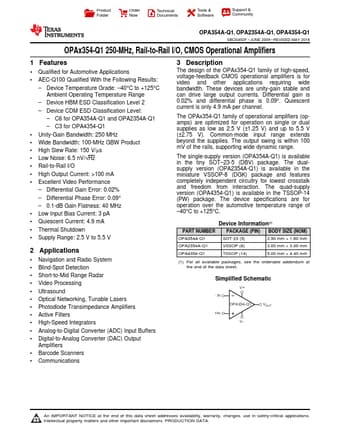

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Product Folder Order Now Technical Documents Tools & Software Support & Community OPA354A-Q1, OPA2354A-Q1, OPA4354-Q1 SBOS492F – JUNE 2009 – REVISED MAY 2018 OPAx354-Q1 250-MHz, Rail-to-Rail I/O, CMOS Operational Amplifiers 1 Features •1 Qualified for Automotive Applications • AEC-Q100 Qualified With the Following Results: – Device Temperature Grade: –40°C to +125°C Ambient Operating Temperature Range – Device HBM ESD Classification Level 2 – Device CDM ESD Classification Level: – C6 for OPA354A-Q1 and OPA2354A-Q1 – C3 for OPA4354-Q1 • Unity-Gain Bandwidth: 250 MHz • Wide Bandwidth: 100-MHz GBW Product • High Slew Rate: 150 V/μs • Low Noise: 6.5 nV/√Hz • Rail-to-Rail I/O • High Output Current: >100 mA • Excellent Video Performance – Differential Gain Error: 0.
