OPA1678 - Low-Distortion Audio Operational Amplifiers

Description

The OPA1678 (dual-channel) and OPA1679 (quadchannel) operational amplifiers offer higher systemlevel performance over legacy op amps commonly used in audio circuitry.

Features

  • 1 Low noise: 4.5 nV/√Hz at 1 kHz.
  • Low distortion: 0.0001% at 1 kHz.
  • High open-loop gain: 114 dB.
  • High common-mode rejection: 110 dB.
  • Low quiescent current:.
  • 2 mA per channel.
  • Low input bias current: 10 pA (typical).
  • Slew rate: 9 V/μs.
  • Wide gain bandwidth: 16 MHz (G = 1).
  • Unity-gain stable.
  • Rail-to-rail output.
  • Wide supply range:.
  • ±2.25 V to ±18 V, or 4.5 V to 36 V.
  • Dual-c.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OPA1013 Precision / Single-Supply DUAL OPERATIONAL AMPLIFIER Burr-Brown
OPA105 FET Input Military Operational AMplifier Burr-Brown
OPA111 Low Noise Precision Difet OPERATIONAL AMPLIFIER Burr-Brown
OPA121 Low Cost Precision Difet OPERATIONAL AMPLIFIER Burr-Brown
OPA124 Low Noise Precision Difet OPERATIONAL AMPLIFIER Burr-Brown

Other Datasheets by Texas Instruments

Part Number Description
OPA1679 Low-Distortion Audio Operational Amplifiers
OPA1602 AUDIO OPERATIONAL AMPLIFIERS
OPA1604 AUDIO OPERATIONAL AMPLIFIERS
OPA1611 Bipolar-Input Audio Operational Amplifiers
OPA1612 Bipolar-Input Audio Operational Amplifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

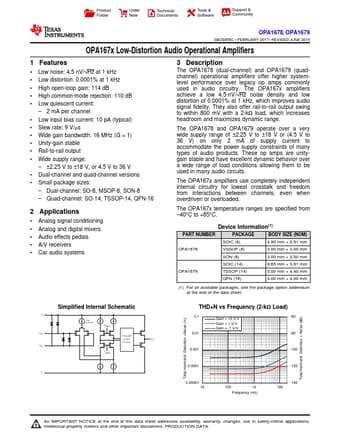

Product Folder Order Now Technical Documents Tools & Software Support & Community OPA1678, OPA1679 SBOS855C – FEBRUARY 2017 – REVISED JUNE 2019 OPA167x Low-Distortion Audio Operational Amplifiers 1 Features •1 Low noise: 4.5 nV/√Hz at 1 kHz • Low distortion: 0.0001% at 1 kHz • High open-loop gain: 114 dB • High common-mode rejection: 110 dB • Low quiescent current: – 2 mA per channel • Low input bias current: 10 pA (typical) • Slew rate: 9 V/μs • Wide gain bandwidth: 16 MHz (G = 1) • Unity-gain stable • Rail-to-rail output • Wide supply range: – ±2.25 V to ±18 V, or 4.
