ONET8501T - 11.3 Gbps Limiting Transimpedance Amplifier

General Description

The ONET8501T is a high-speed, high gain, limiting transimpedance amplifier used in optical receivers with data rates up to 12.5Gbps.

Key Features

  • 1.
  • 10 GHz Bandwidth.
  • 7 kΩ Differential Small Signal Transimpedance.
  • 2.5 mAPP Input Overload Current.
  • Received Signal Strength Indication (RSSI).
  • 100mW Typical Power Dissipation.
  • CML Data Outputs With On-Chip 50Ω Back-Termination.
  • On Chip Supply Filter Capacitor.
  • Single 3.3V Supply.
  • Die Size: 940 × 1195 μm.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ONE2 CMOS Gate Array AMI
ONE4 CMOS Gate Array AMI
ONE6 CMOS Gate Array AMI

Other Datasheets by Texas Instruments

Part Number Description
ONET8501P 11.3-Gbps RATE-SELECTABLE LIMITING AMPLIFIER
ONET8501PB 11.3-Gbps Rate-Selectable Limiting Amplifier
ONET8501V 11.3 Gbps Differential VCSEL Driver
ONET8511T 11.3-Gbps Linear Transimpedance Amplifier
ONET8521T 11.3 Gbps Limiting Transimpedance Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

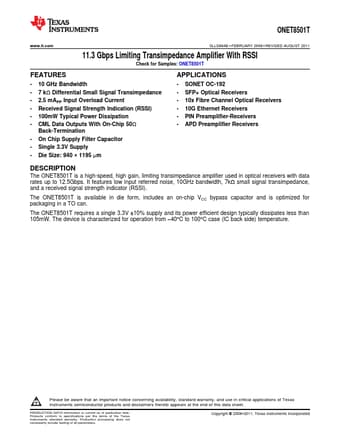

ONET8501T www.ti.com SLLS884B – FEBRUARY 2008 – REVISED AUGUST 2011 11.3 Gbps Limiting Transimpedance Amplifier With RSSI Check for Samples: ONET8501T FEATURES 1 • 10 GHz Bandwidth • 7 kΩ Differential Small Signal Transimpedance • 2.5 mAPP Input Overload Current • Received Signal Strength Indication (RSSI) • 100mW Typical Power Dissipation • CML Data Outputs With On-Chip 50Ω Back-Termination • On Chip Supply Filter Capacitor • Single 3.3V Supply • Die Size: 940 × 1195 μm APPLICATIONS • SONET OC-192 • SFP+ Optical Receivers • 10x Fibre Channel Optical Receivers • 10G Ethernet Receivers • PIN Preamplifier-Receivers • APD Preamplifier Receivers DESCRIPTION The ONET8501T is a high-speed, high gain, limiting transimpedance amplifier used in optical receivers with data rates up to 12.5Gbps.
