ONET4291T - 4.25-Gbps Transimpedance Amplifier

Texas Instruments

📥 Download Datasheet

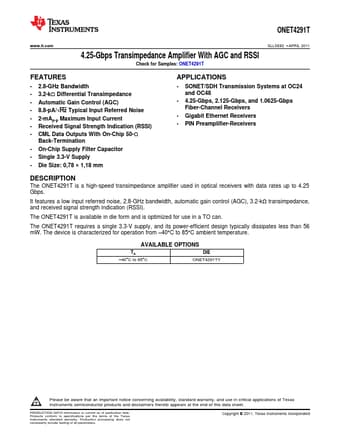

ONET4291T Datasheet Preview — Preview of ONET4291T PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ONET4291T
Manufacturer	Texas Instruments ↗
File Size	624.71 KB
Description	4.25-Gbps Transimpedance Amplifier
Datasheet	ONET4291T-etcTI.pdf

ONET4291T Product details

Description

The ONET4291T is a high-speed transimpedance amplifier used in optical receivers with data rates up to 4.25 Gbps.

Features

1.
2.8-GHz Bandwidth.
3.2-kΩ Differential Transimpedance.
Automatic Gain Control (AGC).
8.8-pA/√Hz Typical Input Referred Noise.
2-mAp-p Maximum Input Current.
Received Signal Strength Indication (RSSI).
CML Data Outputs With On-Chip 50-Ω Back-Termination.
On-Chip Supply Filter Capacitor.
Single 3.3-V Supply.
Die Size: 0,78 × 1,18 mm.
