MSP430G2412 - Mixed-Signal Microcontrollers

Download the MSP430G2412 datasheet PDF. This datasheet also covers the MSP430G2312 variant, as both devices belong to the same mixed-signal microcontrollers family and are provided as variant models within a single manufacturer datasheet.

Description

The Texas Instruments MSP430™ family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications.

Features

  • 1.
  • 23 Low Supply Voltage Range: 1.8 V to 3.6 V.
  • Ultra-Low Power Consumption.
  • Active Mode: 220 µA at 1 MHz, 2.2 V.
  • Standby Mode: 0.5 µA.
  • Off Mode (RAM Retention): 0.1 µA.
  • Five Power-Saving Modes.
  • Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs.
  • 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time.
  • Basic Clock Module Configurations.
  • Internal Frequencies up to 16 MHz With Four Calibrated Frequencies.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MSP430G2312-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MSP4000 MSP for VoIP Gateways with Integrated Secure Router PMC-Sierra
MSP4403W P-Channel Enhancement Mode Power MOSFET MORESEMI
MSP4408G (MSP44x8G) Multistandard Sound Processor Micronas
MSP4410G Multistandard Sound Processor Micronas Semiconductor
MSP4418G (MSP44x8G) Multistandard Sound Processor Micronas

Other Datasheets by Texas Instruments

Part Number Description
MSP430G2413 MIXED SIGNAL MICROCONTROLLER
MSP430G2402 MIXED-SIGNAL MICROCONTROLLER
MSP430G2403 Mixed-Signal Microcontrollers
MSP430G2432 MIXED-SIGNAL MICROCONTROLLER
MSP430G2433 Mixed-Signal Microcontrollers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

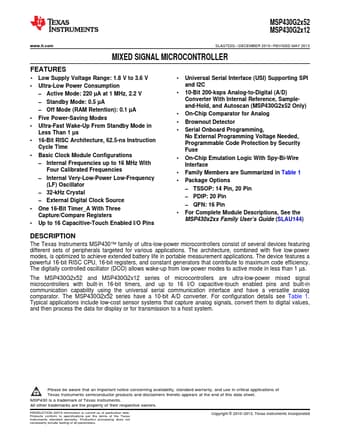

MSP430G2x52 MSP430G2x12 www.ti.com SLAS722G – DECEMBER 2010 – REVISED MAY 2013 MIXED SIGNAL MICROCONTROLLER FEATURES 1 •23 Low Supply Voltage Range: 1.8 V to 3.6 V • Ultra-Low Power Consumption – Active Mode: 220 µA at 1 MHz, 2.2 V – Standby Mode: 0.5 µA – Off Mode (RAM Retention): 0.1 µA • Five Power-Saving Modes • Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs • 16-Bit RISC Architecture, 62.
