MSP430FR2155 - Mixed-Signal Microcontrollers

Download the MSP430FR2155 datasheet PDF. This datasheet also covers the MSP430FR2355 variant, as both devices belong to the same mixed-signal microcontrollers family and are provided as variant models within a single manufacturer datasheet.

Description

MSP430FR215x and MSP430FR235x microcontrollers (MCUs) are part of the MSP430™ MCU value line portfolio of ultra-low-power low-cost devices for sensing and measurement applications.

Features

  • 1.
  • Embedded microcontroller.
  • 16-bit RISC architecture up to 24 MHz.
  • Extended temperature:.
  • 40°C to 105°C.
  • Wide supply voltage range from 3.6 V down to 1.8 V (operational voltage is restricted by SVS levels, see VSVSH- and VSVSH+ in PMM, SVS and BOR).
  • Optimized low-power modes (at 3 V).
  • Active mode: 142 µA/MHz.
  • Standby:.
  • LPM3 with 32768-Hz crystal: 1.43 µA (with SVS enabled).
  • LPM3.5 with 32768-Hz crystal: 620.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MSP430FR2355-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MSP4000 MSP for VoIP Gateways with Integrated Secure Router PMC-Sierra
MSP4403W P-Channel Enhancement Mode Power MOSFET MORESEMI
MSP4408G (MSP44x8G) Multistandard Sound Processor Micronas
MSP4410G Multistandard Sound Processor Micronas Semiconductor
MSP4418G (MSP44x8G) Multistandard Sound Processor Micronas

Other Datasheets by Texas Instruments

Part Number Description
MSP430FR2153 Mixed-Signal Microcontrollers
MSP430FR2100 Mixed-Signal Microcontrollers
MSP430FR2110 Mixed-Signal Microcontrollers
MSP430FR2111 Mixed-Signal Microcontrollers
MSP430FR2000 Mixed-Signal Microcontrollers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

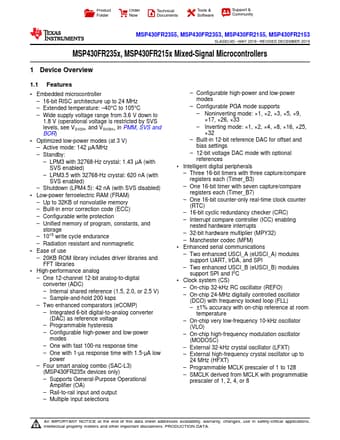

Product Folder Order Now Technical Documents Tools & Software Support & Community MSP430FR2355, MSP430FR2353, MSP430FR2155, MSP430FR2153 SLASEC4D – MAY 2018 – REVISED DECEMBER 2019 MSP430FR235x, MSP430FR215x Mixed-Signal Microcontrollers 1 Device Overview 1.1 Features 1 • Embedded microcontroller – 16-bit RISC architecture up to 24 MHz – Extended temperature: –40°C to 105°C – Wide supply voltage range from 3.6 V down to 1.8 V (operational voltage is restricted by SVS levels, see VSVSH- and VSVSH+ in PMM, SVS and BOR) • Optimized low-power modes (at 3 V) – Active mode: 142 µA/MHz – Standby: – LPM3 with 32768-Hz crystal: 1.43 µA (with SVS enabled) – LPM3.5 with 32768-Hz crystal: 620 nA (with SVS enabled) – Shutdown (LPM4.
