MSP430AFE231, MSP430AFE253 - Mixed-Signal Microcontroller

Texas Instruments

📥 Download Datasheet

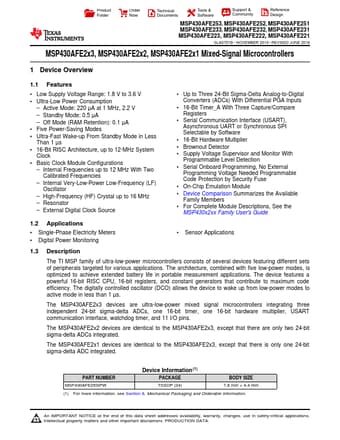

MSP430AFE231 Datasheet Preview — This datasheet PDF includes multiple part numbers: MSP430AFE231, MSP430AFE253. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MSP430AFE231, MSP430AFE253
Manufacturer	Texas Instruments
File Size	1.79 MB
Description	Mixed-Signal Microcontroller
Datasheet	MSP430AFE253-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: MSP430AFE231, MSP430AFE253. Please refer to the document for exact specifications by model.

MSP430AFE231 Product details

Description

, See the MSP430x2xx Family User's Guide 1.2 Applications Single-Phase Electricity Meters Digital Power Monitoring Sensor Applications 1.3 Description The TI MSP family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications.The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications.The device

Features

1.
Low Supply Voltage Range: 1.8 V to 3.6 V.
Ultra-Low Power Consumption.
Active Mode: 220 µA at 1 MHz, 2.2 V.
Standby Mode: 0.5 µA.
Off Mode (RAM Retention): 0.1 µA.
Five Power-Saving Modes.
Ultra-Fast Wake-up From Standby Mode in Less Than 1 µs.
16-Bit RISC Architecture, up to 12-MHz System Clock.
Basic Clock Module Configurations.
Internal Frequencies up to 12 MHz With Two Calibrated Frequencies.
