LVC04A - Hex Inverter

Name: LVC04A
SKU: LVC04A-1481404

Texas Instruments

📥 Download Datasheet

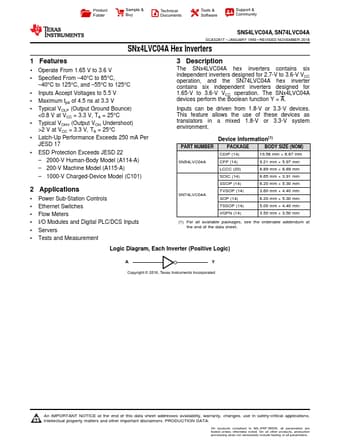

LVC04A Datasheet Preview — Preview of LVC04A PDF

Datasheet Details

Part number	LVC04A
Manufacturer	Texas Instruments
File Size	1.45 MB
Description	Hex Inverter
Datasheet	LVC04A-etcTI.pdf

LVC04A Product details

Description

The SNx4LVC04A hex inverters contains six independent inverters designed for 2.7-V to 3.6-V VCC operation, and the SN74LVC04A hex inverter contains six independent inverters designed for 1.65-V to 3.6-V VCC operation.

Features

1 Operate From 1.65 V to 3.6 V.
Specified From.
40°C to 85°C,.
40°C to 125°C, and.
55°C to 125°C.
Inputs Accept Voltages to 5.5 V.
Maximum tpd of 4.5 ns at 3.3 V.
Typical VOLP (Output Ground Bounce) 2 V at VCC = 3.3 V, TA = 25°C.
Latch-Up Performance Exceeds 250 mA Per JESD 17.
ESD Protection Exceeds JESD 22.
2000-V Human.
