LP5036 - 30-Channel 12-Bit PWM Ultra-low Quiescent Current I2C RGB LED Drivers

LP5036 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community LP5030, LP5036 SLVSEH1B * SEPTEMBER 2018 * REVI.
Efficient and high-performance LED response effects, such as blinking, breathing, and chasing, are critical to improving end-user experience in many h.

LP5036 Features

* 1 Operating Voltage Range:
* VCC Range: 2.7 V to 5.5 V
* EN, SDA, and SCL Pins Compatible With 1.8- V, 3.3-V, and 5-V Power Rails
* Output Maximum Voltage: 6 V
* 36 Constant-Current Sinks With High Precision
* 25.5 mA Maximum per Channel When VCC in F

LP5036 Applications

* LED Lighting, Indicator Lights, and Fun Lights for:
* Smart Speaker
* Smart Home Appliances
* Video Doorbell
* Electric Smart Lock
* Smoke Detector
* Set-Top Box
* Smart Router

📥 Download Datasheet

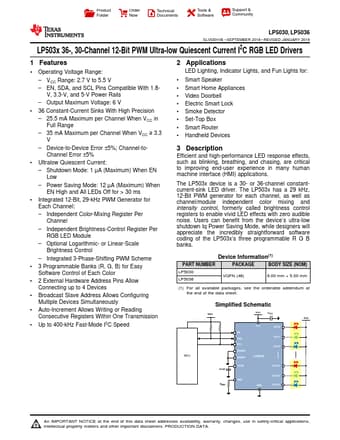

Preview of LP5036 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LP5036
Manufacturer
Texas Instruments ↗
File Size
1.62 MB
Datasheet
LP5036-etcTI.pdf
Description
30-Channel 12-Bit PWM Ultra-low Quiescent Current I2C RGB LED Drivers
