LMZ12002EXT - Power Module

Name: LMZ12002EXT
SKU: LMZ12002EXT-1437362

Texas Instruments

📥 Download Datasheet

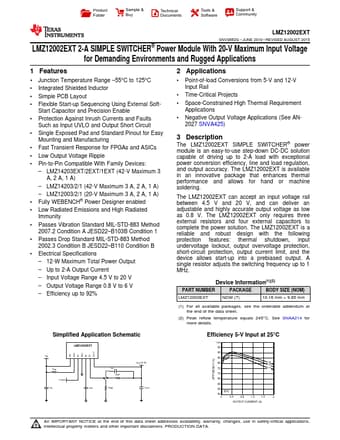

LMZ12002EXT Datasheet Preview — Preview of LMZ12002EXT PDF

Datasheet Details

Part number	LMZ12002EXT
Manufacturer	Texas Instruments
File Size	1.78 MB
Description	Power Module
Datasheet	LMZ12002EXT-etcTI.pdf

LMZ12002EXT Product details

Description

The LMZ12002EXT SIMPLE SWITCHER® power module is an easy-to-use step-down DC-DC solution capable of driving up to 2-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy.

Features

1 Junction Temperature Range.
55°C to 125°C.
Integrated Shielded Inductor.
Simple PCB Layout.
Flexible Start-up Sequencing Using External Soft- Start Capacitor and Precision Enable.
Protection Against Inrush Currents and Faults Such as Input UVLO and Output Short Circuit.
Single Exposed Pad and Standard Pinout for Easy Mounting and Manufacturing.
Fast Transient Response for FPGAs and ASICs.
Low Output Voltage Ripple.
