LMV7239-Q1 - Rail-to-Rail Input Comparator

Description

The LMV7239-Q1 is a ultra low power, low voltage, 75-ns comparator.

It is ensured to operate over the full supply voltage range of 2.7 V to 5.5 V.

This device achieves a 75-ns propagation delay while consuming only 65 µA of supply current at 5 V.

Features

  • 1 Qualified for Automotive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LMV7239 45ns / Ultra Low Power / Low Voltage / Rail-to-Rail Input Comparator National Semiconductor
LMV7235 45ns / Ultra Low Power / Low Voltage / Rail-to-Rail Input Comparator National Semiconductor
LMV721 10MHz / Low Noise / Low Voltage / and Low Power Operational Amplifier National Semiconductor
LMV7219 7 nsec / 2.7V to 5V Comparator National Semiconductor
LMV722 10MHz / Low Noise / Low Voltage / and Low Power Operational Amplifier National Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
LMV7239 Rail-to-Rail Input Comparator
LMV7231 Hex Window Comparator
LMV7235 Rail-to-Rail Input Comparator
LMV721 10-MHz LOW-NOISE LOW-VOLTAGE LOW-POWER OPERATIONAL AMPLIFIERS
LMV721-N LOW-POWER OPERATIONAL AMPLIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

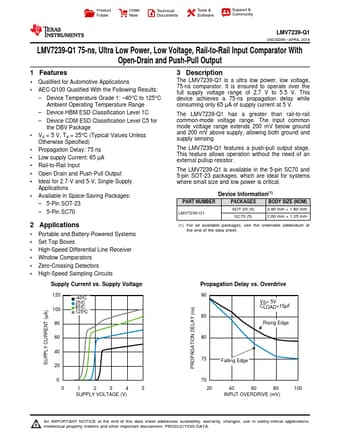

Product Folder Order Now Technical Documents Tools & Software Support & Community LMV7239-Q1 SNOSD85 – APRIL 2018 LMV7239-Q1 75-ns, Ultra Low Power, Low Voltage, Rail-to-Rail Input Comparator With Open-Drain and Push-Pull Output 1 Features •1 Qualified for Automotive Applications • AEC-Q100 Qualified With the Following Results: – Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range – Device HBM ESD Classification Level 1C – Device CDM ESD Classification Level C5 for the DBV Package • VS = 5 V, TA = 25°C (Typical Values Unless Otherwise Specified) • Propagation Delay: 75 ns • Low supply Current: 65 µA • Rail-to-Rail Input • Open Drain and Push-Pull Output • Ideal for 2.
