LMV722, LMV721 - 10-MHz LOW-NOISE LOW-VOLTAGE LOW-POWER OPERATIONAL AMPLIFIERS

Texas Instruments

The LMV722 by Texas Instruments is a 10-MHz LOW-NOISE LOW-VOLTAGE LOW-POWER OPERATIONAL AMPLIFIERS. Below is the official datasheet preview.

📥 Download Datasheet

LMV722 10-MHz LOW-NOISE LOW-VOLTAGE LOW-POWER OPERATIONAL AMPLIFIERS by Texas Instruments - Datasheet Preview — Official preview page of the **LMV722** 10-MHz LOW-NOISE LOW-VOLTAGE LOW-POWER OPERATIONAL AMPLIFIERS datasheet (Texas Instruments).

Datasheet Details

Part number	LMV722, LMV721
Manufacturer	Texas Instruments
File Size	1.05 MB
Description	10-MHz LOW-NOISE LOW-VOLTAGE LOW-POWER OPERATIONAL AMPLIFIERS
Datasheet	LMV721-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LMV722, LMV721. Please refer to the document for exact specifications by model.

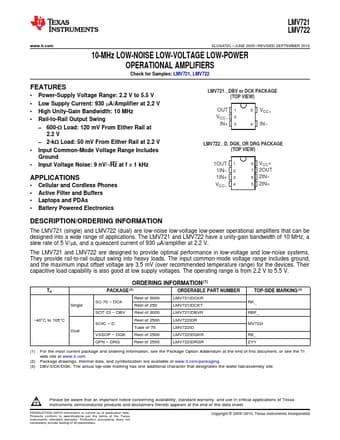

Additional preview pages of the LMV722 datasheet.

LMV722 Product details

Description

ORDERING INFORMATION The LMV721 (single) and LMV722 (dual) are low-noise low-voltage low-power operational amplifiers that can be designed into a wide range of applications.The LMV721 and LMV722 have a unity-gain bandwidth of 10 MHz, a slew rate of 5 V/ms, and a quiescent current of 930 mA/amplifier at 2.2 V.The LMV721 and LMV722 are designed to provide optimal performance in low-voltage and low-noise systems.They provide rail-to-rail output swing into heavy loads.The input common-mode volta

Features

1.
Power-Supply Voltage Range: 2.2 V to 5.5 V.
Low Supply Current: 930 mA/Amplifier at 2.2 V.
High Unity-Gain Bandwidth: 10 MHz.
Rail-to-Rail Output Swing.
600-Ω Load: 120 mV From Either Rail at 2.2 V.
2-kΩ Load: 50 mV From Either Rail at 2.2 V.
Input Common-Mode Voltage Range Includes Ground.
Input Voltage Noise: 9 nV/√Hz at f = 1 kHz.
