LMH6733 - Triple Operational Amplifier

Description

The LMH6733 is a triple, wideband, operational amplifier designed specifically for use where high speed and low power are required.

Input voltage range and output voltage swing are optimized for operation on supplies as low as 3V and up to ±6V.

Features

  • 1.
  • 2 Supply Range 3 to 12V Single Supply.
  • Supply Range ±1.5V to ±6V Split Supply.
  • 1.0 GHz.
  • 3 dB Small Signal Bandwidth.
  • (AV = +1, VS = ±5V).
  • 650 MHz.
  • 3 dB Small Signal Bandwidth.
  • (AV = +2, VS = 5V).
  • Low Supply Current (5.5 mA per op Amp, VS = 5V).
  • 2.1 nV/√Hz Input Noise Voltage.
  • 3750 V/μs Slew Rate.
  • 70 mA Linear Output Current.
  • CMIR and Output Swing to 1V from Each Supply Rail APPLIC.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LMH6733 Triple Operational Amplifier National Semiconductor
LMH6732 High Speed Op Amp National Semiconductor
LMH6738 Very Wideband / Low Distortion Triple Op Amp National Semiconductor
LMH6739 Very Wideband / Low Distortion Triple Video Buffer National Semiconductor
LMH6702 Ultra Low Distortion / Wideband Op Amp National Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
LMH6732 High Speed Op Amp
LMH6734 Triple Selectable Gain Buffer
LMH6738 Very Wideband Low Distortion Triple Op Amp
LMH6739 Low Distortion Triple Video Buffer
LMH6702 1.7-GHz Ultra-Low Distortion Wideband Op Amp

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

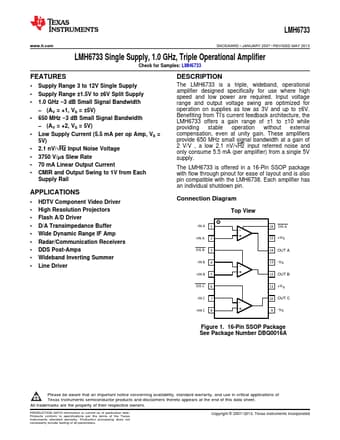

LMH6733 www.ti.com SNOSAW0D – JANUARY 2007 – REVISED MAY 2013 LMH6733 Single Supply, 1.0 GHz, Triple Operational Amplifier Check for Samples: LMH6733 FEATURES 1 •2 Supply Range 3 to 12V Single Supply • Supply Range ±1.5V to ±6V Split Supply • 1.0 GHz −3 dB Small Signal Bandwidth – (AV = +1, VS = ±5V) • 650 MHz −3 dB Small Signal Bandwidth – (AV = +2, VS = 5V) • Low Supply Current (5.5 mA per op Amp, VS = 5V) • 2.
