LMH6624 - Single/Dual Ultra Low Noise Wideband Operational Amplifier

Texas Instruments

📥 Download Datasheet

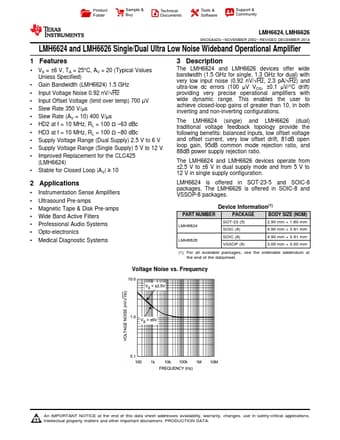

LMH6624 Datasheet Preview — Preview of LMH6624 PDF

Datasheet Details

Part number	LMH6624
Manufacturer	Texas Instruments
File Size	2.19 MB
Description	Single/Dual Ultra Low Noise Wideband Operational Amplifier
Datasheet	LMH6624-etcTI.pdf

LMH6624 Product details

Description

The LMH6624 and LMH6626 devices offer wide bandwidth (1.5 GHz for single, 1.3 GHz for dual) with very low input noise (0.92 nV/√Hz, 2.3 pA/√Hz) and ultra-low dc errors (100 μV VOS, ±0.1 μV/°C drift) providing very precise operational amplifiers with wide dynamic range.

Features

1 VS = ±6 V, TA = 25°C, AV = 20 (Typical Values Unless Specified).
Gain Bandwidth (LMH6624) 1.5 GHz.
Input Voltage Noise 0.92 nV/√Hz.
Input Offset Voltage (limit over temp) 700 µV.
Slew Rate 350 V/μs.
Slew Rate (AV = 10) 400 V/μs.
HD2 at f = 10 MHz, RL = 100 Ω.
63 dBc.
HD3 at f = 10 MHz, RL = 100 Ω.
80 dBc.
Supply Voltage Range (Dual Supply) 2.5 V to 6 V.
Supply Voltage Range (Single Supply).
