LMH0318 - 3Gbps HD/SD SDI Reclocker

Name: LMH0318
SKU: LMH0318-1408372

Texas Instruments

📥 Download Datasheet

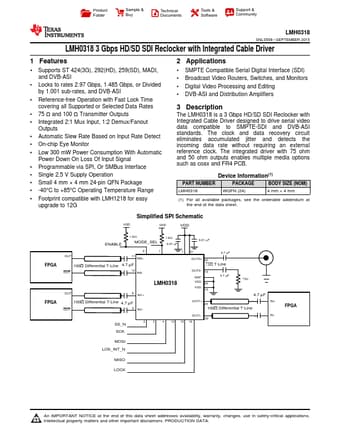

LMH0318 Datasheet Preview — Preview of LMH0318 PDF

Datasheet Details

Part number	LMH0318
Manufacturer	Texas Instruments
File Size	1.38 MB
Description	3Gbps HD/SD SDI Reclocker
Datasheet	LMH0318-etcTI.pdf

LMH0318 Product details

Description

The LMH0318 is a 3 Gbps HD/SD SDI Reclocker with Integrated Cable Driver designed to drive serial video data compatible to SMPTE-SDI and DVB-ASI standards.

Features

1 Supports ST 424(3G), 292(HD), 259(SD), MADI, and DVB-ASI.
Locks to rates 2.97 Gbps, 1.485 Gbps, or Divided by 1.001 sub-rates, and DVB-ASI.
Reference-free Operation with Fast Lock Time covering all Supported or Selected Data Rates.
75 Ω and 100 Ω Transmitter Outputs.
Integrated 2:1 Mux Input, 1:2 Demux/Fanout Outputs.
Automatic Slew Rate Based on Input Rate Detect.
On-chip Eye Monitor.
Low 300 mW Power Consumption With Aut.
