LM8335 - General Purpose Output Expander

Texas Instruments

The LM8335 by Texas Instruments is a General Purpose Output Expander. Below is the official datasheet preview.

📥 Download Datasheet

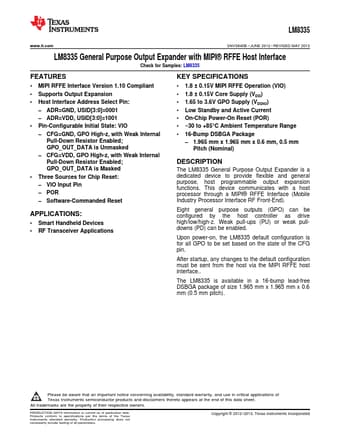

LM8335 General Purpose Output Expander by Texas Instruments - Datasheet Preview — Official preview page of the **LM8335** General Purpose Output Expander datasheet (Texas Instruments).

Datasheet Details

Part number	LM8335
Manufacturer	Texas Instruments
File Size	1.70 MB
Description	General Purpose Output Expander
Datasheet	LM8335-etcTI.pdf
Additional preview pages of the LM8335 datasheet.

LM8335 Product details

Description

The LM8335 General Purpose Output Expander is a dedicated device to provide flexible and general purpose, host programmable output expansion functions.

Features

1.
2 MIPI RFFE Interface Version 1.10 Compliant.
Supports Output Expansion.
Host Interface Address Select Pin:.
ADR=GND, USID[3:0]=0001.
ADR=VDD, USID[3:0]=1001.
Pin-Configurable Initial State: VIO.
CFG=GND, GPO High-z, with Weak Internal Pull-Down Resistor Enabled; GPO_OUT_DATA is Unmasked.
CFG=VDD, GPO High-z, with Weak Internal Pull-Down Resistor Enabled; GPO_OUT_DATA is Masked.
Three Sources for Chip Reset:.
