LM8261 - Single RRIO High Output Current & Unlimited Cap Load Op Amp

Texas Instruments

The LM8261 by Texas Instruments is a Single RRIO High Output Current & Unlimited Cap Load Op Amp. Below is the official datasheet preview.

📥 Download Datasheet

LM8261 Single RRIO High Output Current & Unlimited Cap Load Op Amp by Texas Instruments - Datasheet Preview — Official preview page of the **LM8261** Single RRIO High Output Current & Unlimited Cap Load Op Amp datasheet (Texas Instruments).

Datasheet Details

Part number	LM8261
Manufacturer	Texas Instruments
File Size	1.78 MB
Description	Single RRIO High Output Current & Unlimited Cap Load Op Amp
Datasheet	LM8261-etcTI.pdf

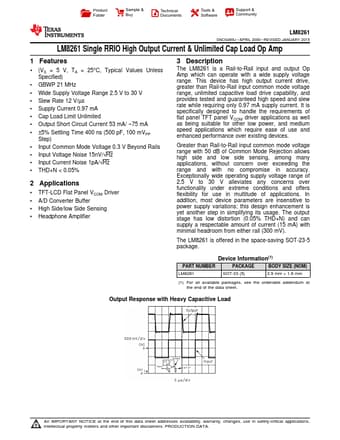

Additional preview pages of the LM8261 datasheet.

LM8261 Product details

Description

The LM8261 is a Rail-to-Rail input and output Op Amp which can operate with a wide supply voltage range.

Features

1 (VS = 5 V, TA = 25°C, Typical Values Unless Specified).
GBWP 21 MHz.
Wide Supply Voltage Range 2.5 V to 30 V.
Slew Rate 12 V/µs.
Supply Current 0.97 mA.
Cap Load Limit Unlimited.
Output Short Circuit Current 53 mA/.
75 mA.
±5% Settling Time 400 ns (500 pF, 100 mVPP Step).
Input Common Mode Voltage 0.3 V Beyond Rails.
Input Voltage Noise 15nV/√Hz.
Input Current Noise 1pA/√Hz.
THD+.
