LM74 - SPI/Microwire12-Bit Plus Sign Temperature Sensor

Datasheet Summary

Description

The LM74 is a temperature sensor, Delta-Sigma analog-to-digital converter with an SPI and MICROWIRE compatible interface.

The host can query the LM74 at any time to read temperature.

A shutdown mode decreases power consumption to less than 10 μA.

Features

  • 1.
  • 2 0.0625°C Temperature Resolution.
  • Shutdown Mode Conserves Power Between Temperature Reading.
  • SPI and.

📥 Download Datasheet

Datasheet preview – LM74

Datasheet Details

Part number LM74
Manufacturer Texas Instruments
File Size 881.96 KB
Description SPI/Microwire12-Bit Plus Sign Temperature Sensor
Datasheet download datasheet LM74 Datasheet
Additional preview pages of the LM74 datasheet.

📁 Similar Datasheet

  • LM74 - 12-Bit Plus Sign Temperature Sensor (National Semiconductor)
  • LM741 - Single Operational Amplifier (Fairchild Semiconductor)
  • LM741 - Operational Amplifier (National Semiconductor)
  • LM741 - 0.9MHz Single and Dual High Gain Operational Amplifiers (Intersil Corporation)
  • LM741 - GENERAL-PURPOSE OPERATIONAL AMPLIFIER (UTC)
  • LM741A - Operational Amplifier (National Semiconductor)
  • LM741C - 0.9MHz Single and Dual High Gain Operational Amplifiers (Intersil Corporation)
  • LM741C - Operational Amplifier (National Semiconductor)
  • LM741CH - Operational Amplifier (National Semiconductor)
  • LM741CM - Single Operational Amplifier (Fairchild Semiconductor)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

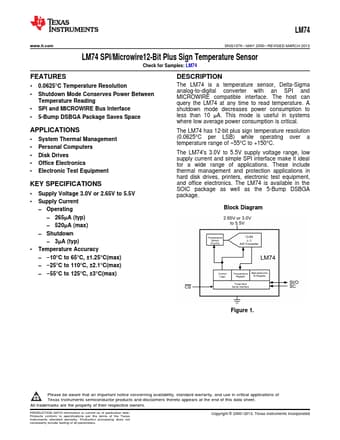

LM74 www.ti.com SNIS107K – MAY 2000 – REVISED MARCH 2013 LM74 SPI/Microwire12-Bit Plus Sign Temperature Sensor Check for Samples: LM74 FEATURES 1 •2 0.0625°C Temperature Resolution • Shutdown Mode Conserves Power Between Temperature Reading • SPI and MICROWIRE Bus Interface • 5-Bump DSBGA Package Saves Space APPLICATIONS • System Thermal Management • Personal Computers • Disk Drives • Office Electronics • Electronic Test Equipment KEY SPECIFICATIONS • Supply Voltage 3.0V or 2.65V to 5.5V • Supply Current – Operating – 265μA (typ) – 520μA (max) – Shutdown – 3μA (typ) • Temperature Accuracy – −10°C to 65°C, ±1.25°C(max) – −25°C to 110°C, ±2.
