LM7171 - Voltage Feedback Amplifier

Name: LM7171
SKU: LM7171-1424716

Texas Instruments

📥 Download Datasheet

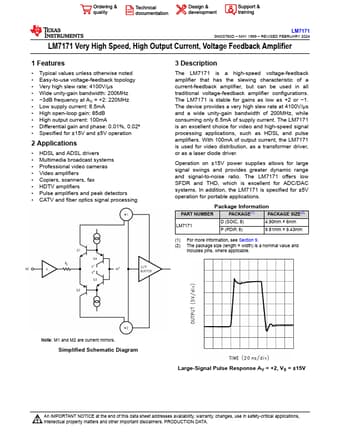

LM7171 Datasheet Preview — Preview of LM7171 PDF

Datasheet Details

Part number	LM7171
Manufacturer	Texas Instruments
File Size	1.82 MB
Description	Voltage Feedback Amplifier
Datasheet	LM7171-etcTI.pdf

LM7171 Product details

Description

The LM7171 is a high-speed voltage-feedback amplifier that has the slewing characteristic of a current-feedback amplifier, but can be used in all traditional voltage-feedback amplifier configurations. 1.

Features

Typical values unless otherwise noted.
Easy-to-use voltage-feedback topology.
Very high slew rate: 4100V/μs.
Wide unity-gain bandwidth: 200MHz.
3dB frequency at AV = +2: 220MHz.
Low supply current: 6.5mA.
High open-loop gain: 85dB.
High output current: 100mA.
Differential gain and phase: 0.01%, 0.02º.
Specified for ±15V and ±5V operation 2.
