LM555H, LM555QML - Timer

Texas Instruments

The LM555H by Texas Instruments is a Timer. Below is the official datasheet preview.

📥 Download Datasheet

LM555H Timer by Texas Instruments - Datasheet Preview — Official preview page of the LM555H Timer datasheet (Texas Instruments).

Datasheet Details

Part number	LM555H, LM555QML
Manufacturer	Texas Instruments
File Size	716.42 KB
Description	Timer
Datasheet	LM555QML-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LM555H, LM555QML. Please refer to the document for exact specifications by model.

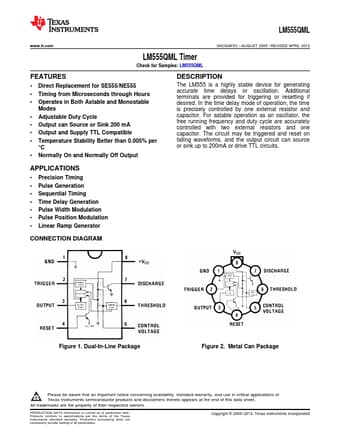

Additional preview pages of the LM555H datasheet.

LM555H Product details

Description

The LM555 is a highly stable device for generating accurate time delays or oscillation.

Features

1.
2 Direct Replacement for SE555/NE555.
Timing from Microseconds through Hours.
Operates in Both Astable and Monostable Modes.
Adjustable Duty Cycle.
Output can Source or Sink 200 mA.
Output and Supply TTL Compatible.
Temperature Stability Better than 0.005% per °C.
Normally On and Normally Off Output.
