LM53603-Q1, LM53602-Q1 - 2.1 MHz StepDown Converters

Texas Instruments

The LM53603-Q1 by Texas Instruments is a 2.1 MHz StepDown Converters. Below is the official datasheet preview.

📥 Download Datasheet

LM53603-Q1 2.1 MHz StepDown Converters by Texas Instruments - Datasheet Preview — Official preview page of the **LM53603-Q1** 2.1 MHz StepDown Converters datasheet (Texas Instruments).

Datasheet Details

Part number	LM53603-Q1, LM53602-Q1
Manufacturer	Texas Instruments
File Size	2.01 MB
Description	2.1 MHz StepDown Converters
Datasheet	LM53602-Q1-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LM53603-Q1, LM53602-Q1. Please refer to the document for exact specifications by model.

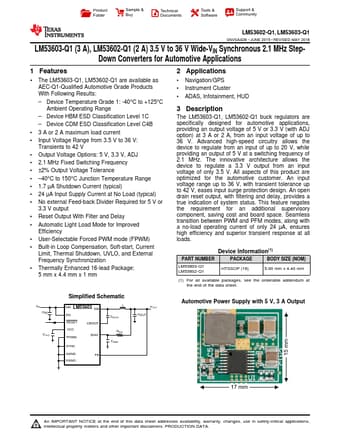

Additional preview pages of the LM53603-Q1 datasheet.

LM53603-Q1 Product details

Description

The LM53603-Q1, LM53602-Q1 buck regulators are specifically designed for automotive applications, providing an output voltage of 5 V or 3.3 V (with ADJ option) at 3 A or 2 A, from an input voltage of up to 36 V.

Features

1 The LM53603-Q1, LM53602-Q1 are available as AEC-Q1-Qualified Automotive Grade Products With Following Results:.
Device Temperature Grade 1: -40°C to +125°C Ambient Operating Range.
Device HBM ESD Classification Level 1C.
Device CDM ESD Classification Level C4B.
3 A or 2 A maximum load current.
Input Voltage Range from 3.5 V to 36 V: Transients to 42 V.
Output Voltage Options: 5 V, 3.3 V, ADJ.
2.1 MHz Fixed Switching Freque.
