LM51501-Q1 - Wide VIN Automotive Boost Controller

Description

The LM51501-Q1 device is a wide input range automatic boost controller.

The device can be used to maintain a stable output voltage during automotive cranking from a vehicle battery or from a back-up battery.

The LM51501-Q1 switching frequency is programmed by a resistor from 220 kHz to 2.3 MHz.

Features

  • 1 AEC-Q100 Qualified:.
  • Device Temperature Grade 1:.
  • 40°C to +125°C Ambient Operating Temperature Range.
  • Device HBM ESD Classification Level 2.
  • Device CDM ESD Classification Level C4B.
  • Wide VIN Input Range From 1.5 V to 42 V When VOUT ≥ 5 V (65-V Absolute Maximum).
  • Low Shutdown Current (IQ ≤ 5 µA).
  • Low Standby Current (IQ ≤ 15 µA).
  • Four Programmable Output Voltage Options and Two Selectable Configurations.
  • 6.

📥 Download Datasheet

📁 Similar Datasheet

  • LM5100 - High Voltage High Side and Low Side Gate Driver (National Semiconductor)
  • LM5100A - (LM5100x / LM5101x) High Voltage High Side and Low Side Gate Drivers (National Semiconductor)
  • LM5100B - (LM5100x / LM5101x) High Voltage High Side and Low Side Gate Drivers (National Semiconductor)
  • LM5100C - (LM5100x / LM5101x) High Voltage High Side and Low Side Gate Drivers (National Semiconductor)
  • LM5101 - High Voltage High Side and Low Side Gate Driver (National Semiconductor)
  • LM5101A - (LM5100x / LM5101x) High Voltage High Side and Low Side Gate Drivers (National Semiconductor)
  • LM5101B - (LM5100x / LM5101x) High Voltage High Side and Low Side Gate Drivers (National Semiconductor)
  • LM5101C - (LM5100x / LM5101x) High Voltage High Side and Low Side Gate Drivers (National Semiconductor)
  • LM5102 - High Voltage Half-Bridge Gate Driver (National Semiconductor)
  • LM5104 - High Voltage Half-Bridge Gate Driver (National Semiconductor)
Other Datasheets by Texas Instruments
  • LM5150-Q1 - Wide VIN Automotive Boost Controller
  • LM5152-Q1 - Synchronous Boost Controller
  • LM51521-Q1 - Synchronous Boost Controller
  • LM5155 - 2.2-MHz Wide Input Nonsynchronous Boost Flyback Controller
  • LM5155-Q1 - 2.2-MHz Wide Input Nonsynchronous Boost Flyback Controller
  • LM51551 - 2.2-MHz Wide Input Nonsynchronous Boost Flyback Controller
  • LM51551-Q1 - 2.2-MHz Wide Input Nonsynchronous Boost Flyback Controller
  • LM5156 - Non-synchronous Boost/SEPIC/Flyback Controller

Full PDF Text Transcription

Click to expand full text

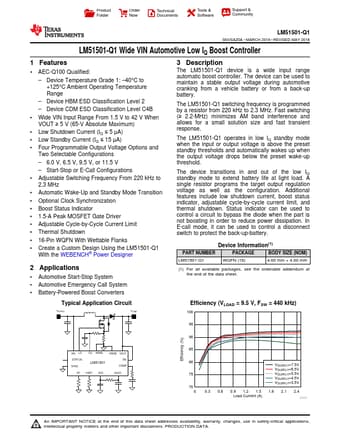

Product Folder Order Now Technical Documents Tools & Software Support & Community LM51501-Q1 SNVSAZ0A – MARCH 2018 – REVISED MAY 2018 LM51501-Q1 Wide VIN Automotive Low IQ Boost Controller 1 Features •1 AEC-Q100 Qualified: – Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature Range – Device HBM ESD Classification Level 2 – Device CDM ESD Classification Level C4B • Wide VIN Input Range From 1.5 V to 42 V When VOUT ≥ 5 V (65-V Absolute Maximum) • Low Shutdown Current (IQ ≤ 5 µA) • Low Standby Current (IQ ≤ 15 µA) • Four Programmable Output Voltage Options and Two Selectable Configurations – 6.0 V, 6.5 V, 9.5 V, or 11.5 V – Start-Stop or E-Call Configurations • Adjustable Switching Frequency From 220 kHz to 2.
