LM5012 - 2.5-A Non-Synchronous Buck DC/DC Converter

The LM5012 by Texas Instruments is a 2.5-A Non-Synchronous Buck DC/DC Converter. Below is the official datasheet preview.

📥 Download Datasheet

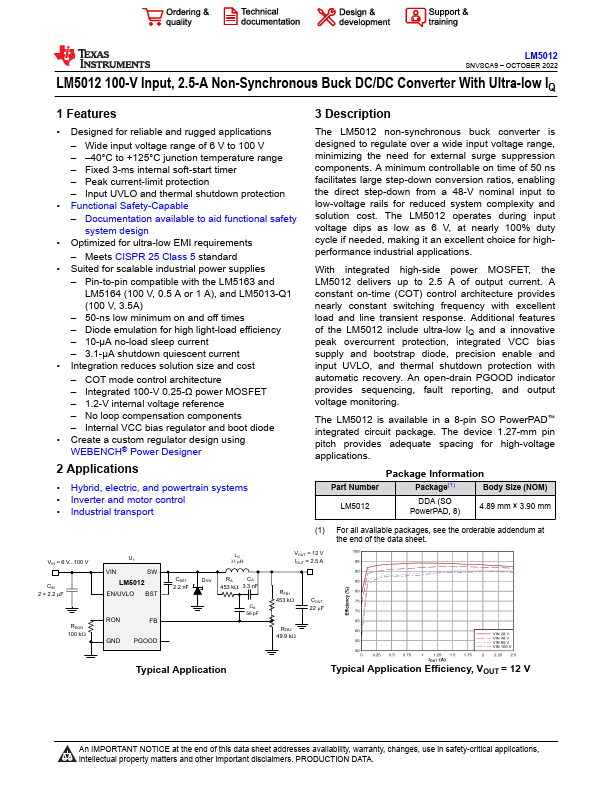

Official preview page of the LM5012 2.5-A Non-Synchronous Buck DC/DC Converter datasheet (Texas Instruments).

Datasheet Details

Part number LM5012
Manufacturer Texas Instruments
File Size 2.24 MB
Description 2.5-A Non-Synchronous Buck DC/DC Converter
Datasheet download datasheet LM5012-etcTI.pdf

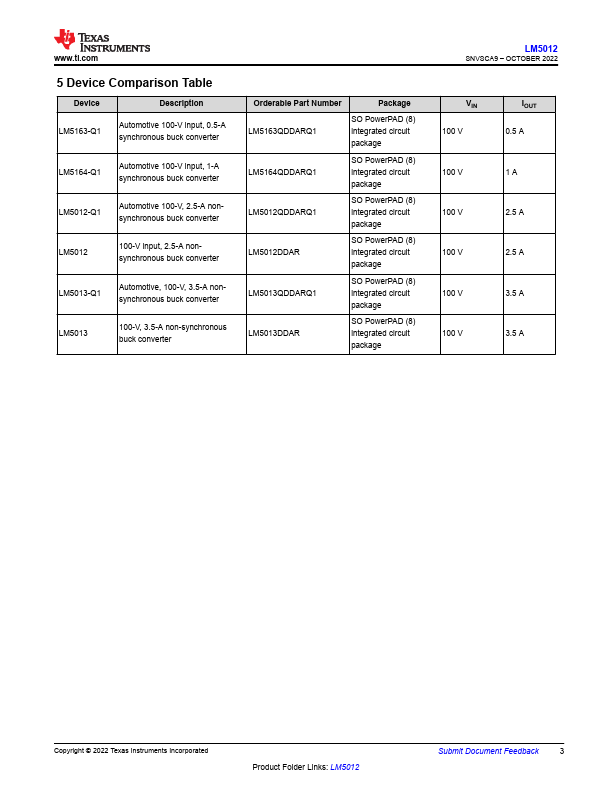

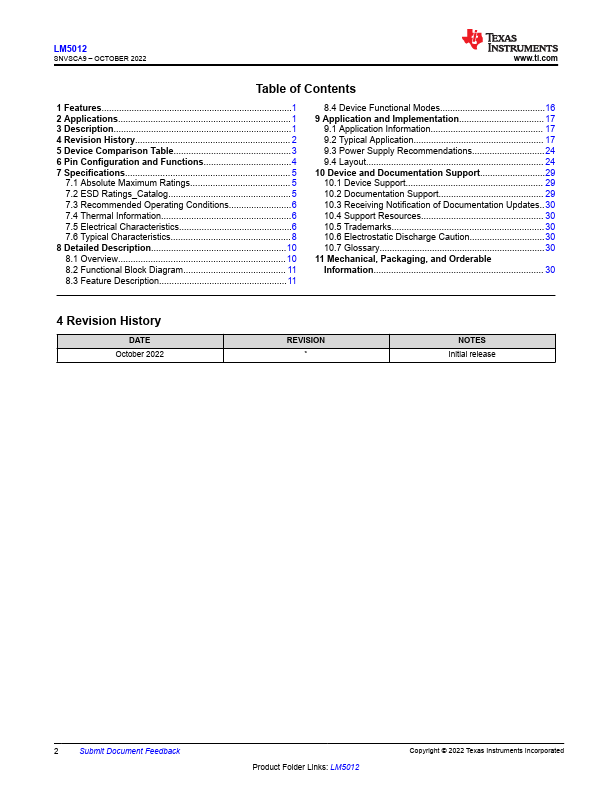

Additional preview pages of the LM5012 datasheet.

LM5012 Product details

Description

Designed for reliable and rugged applications Wide input voltage range of 6 V to 100 V 40°C to +125°C junction temperature range Fixed 3-ms internal soft-start timer Peak current-limit protection Input UVLO and thermal shutdown protection Functional Safety-Capable Documentation available to aid functional safety system design Optimized for ultra-low EMI requirements Meets CISPR 25 Class

Features
