LM4915 - Pseudo-Differential Mono Headphone Amplifier

Name: LM4915
SKU: LM4915-1509998

Texas Instruments

📥 Download Datasheet

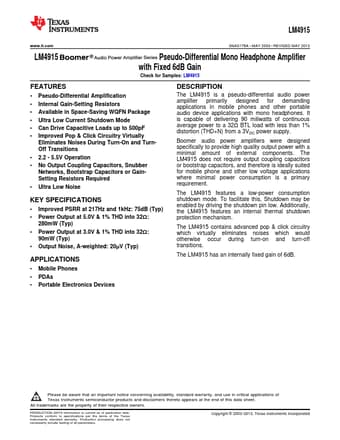

LM4915 Datasheet Preview — Preview of LM4915 PDF

Datasheet Details

Part number	LM4915
Manufacturer	Texas Instruments
File Size	468.94 KB
Description	Pseudo-Differential Mono Headphone Amplifier
Datasheet	LM4915-etcTI.pdf

LM4915 Product details

Description

The LM4915 is a pseudo-differential audio power amplifier primarily designed for demanding applications in mobile phones and other portable audio device applications with mono headphones.

Features

1.
2 Pseudo-Differential Amplification.
Internal Gain-Setting Resistors.
Available in Space-Saving WQFN Package.
Ultra Low Current Shutdown Mode.
Can Drive Capacitive Loads up to 500pF.
Improved Pop & Click Circuitry Virtually Eliminates Noises During Turn-On and TurnOff Transitions.
2.2 - 5.5V Operation.
No Output Coupling Capacitors, Snubber Networks, Bootstrap Capacitors or GainSetting Resistors Required.
Ultra Lo.
