LM4911 - Stereo 40mW Low Noise Headphone Amplifier

Name: LM4911
SKU: LM4911-1509994

Texas Instruments

📥 Download Datasheet

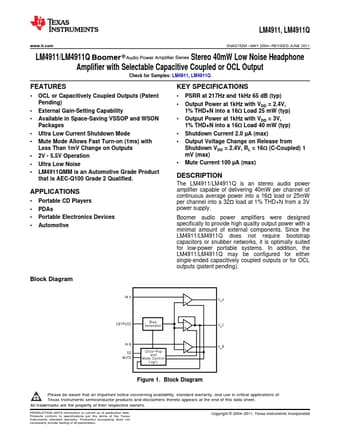

LM4911 Datasheet Preview — Preview of LM4911 PDF

Datasheet Details

Part number	LM4911
Manufacturer	Texas Instruments
File Size	2.11 MB
Description	Stereo 40mW Low Noise Headphone Amplifier
Datasheet	LM4911-etcTI.pdf

LM4911 Product details

Description

The LM4911/LM4911Q is an stereo audio power amplifier capable of delivering 40mW per channel of continuous average power into a 16Ω load or 25mW per channel into a 32Ω load at 1% THD+N from a 3V power supply.

Features

1.
2 OCL or Capacitively Coupled Outputs (Patent Pending).
External Gain-Setting Capability.
Available in Space-Saving VSSOP and WSON Packages.
Ultra Low Current Shutdown Mode.
Mute Mode Allows Fast Turn-on (1ms) with Less Than 1mV Change on Outputs.
2V - 5.5V Operation.
Ultra Low Noise.
LM4911QMM is an Automotive Grade Product that is AEC-Q100 Grade 2 Qualified.
