LM336-2.5-NV - Reference Diode

Description

The LM136-2.5-N/LM236-2.5-N and LM336-2.5-N integrated circuits are precision 2.5V shunt regulator diodes.

These monolithic IC voltage references operate as a low-temperature-coefficient 2.5V zener with 0.2Ω dynamic impedance.

Features

  • 1.
  • 2 Low Temperature Coefficient.
  • Wide Operating Current of 400 μA to 10 mA.
  • 0.2Ω Dynamic Impedance.
  • ±1% Initial Tolerance Available.
  • Specified Temperature Stability.
  • Easily Trimmed for Minimum Temperature Drift.
  • Fast Turn-On.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM336-2.5 2.5Volt Reference Linear Technology
LM336-2.5 Programmable Shunt Regulator Fairchild Semiconductor
LM336-2.5 Reference Diode National Semiconductor
LM336-5.0 5.0V Reference Diode National Semiconductor
LM336 Programmable Shunt Regulator Fairchild Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
LM336-2.5-N Reference Diode
LM336-2.5 2.5-V INTEGRATED REFERENCE CIRCUITS
LM336-5.0 5.0V Reference Diode
LM3361A LM3361A Low Voltage/Power Narrow Band FM IF System (Rev. A)
LM336B-2.5 2.5-V INTEGRATED REFERENCE CIRCUITS

Full PDF Text Transcription

Click to expand full text

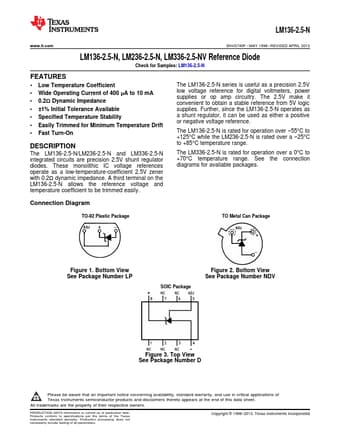

LM136-2.5-N www.ti.com SNVS749F – MAY 1998 – REVISED APRIL 2013 LM136-2.5-N, LM236-2.5-N, LM336-2.5-NV Reference Diode Check for Samples: LM136-2.5-N FEATURES 1 •2 Low Temperature Coefficient • Wide Operating Current of 400 μA to 10 mA • 0.2Ω Dynamic Impedance • ±1% Initial Tolerance Available • Specified Temperature Stability • Easily Trimmed for Minimum Temperature Drift • Fast Turn-On DESCRIPTION The LM136-2.5-N/LM236-2.5-N and LM336-2.5-N integrated circuits are precision 2.5V shunt regulator diodes. These monolithic IC voltage references operate as a low-temperature-coefficient 2.5V zener with 0.2Ω dynamic impedance. A third terminal on the LM136-2.5-N allows the reference voltage and temperature coefficient to be trimmed easily. The LM136-2.5-N series is useful as a precision 2.
