LM324LV, LM321LV - Low Voltage Operational Amplifiers

Texas Instruments

The LM324LV by Texas Instruments is a Low Voltage Operational Amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

LM324LV Low Voltage Operational Amplifiers by Texas Instruments - Datasheet Preview — Official preview page of the LM324LV Low Voltage Operational Amplifiers datasheet (Texas Instruments).

Datasheet Details

Part number	LM324LV, LM321LV
Manufacturer	Texas Instruments
File Size	3.11 MB
Description	Low Voltage Operational Amplifiers
Datasheet	LM321LV-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LM324LV, LM321LV. Please refer to the document for exact specifications by model.

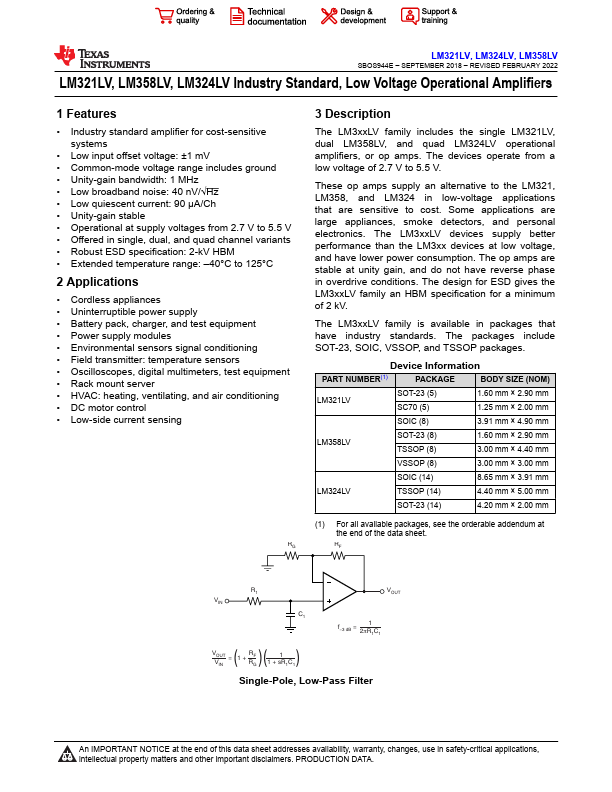

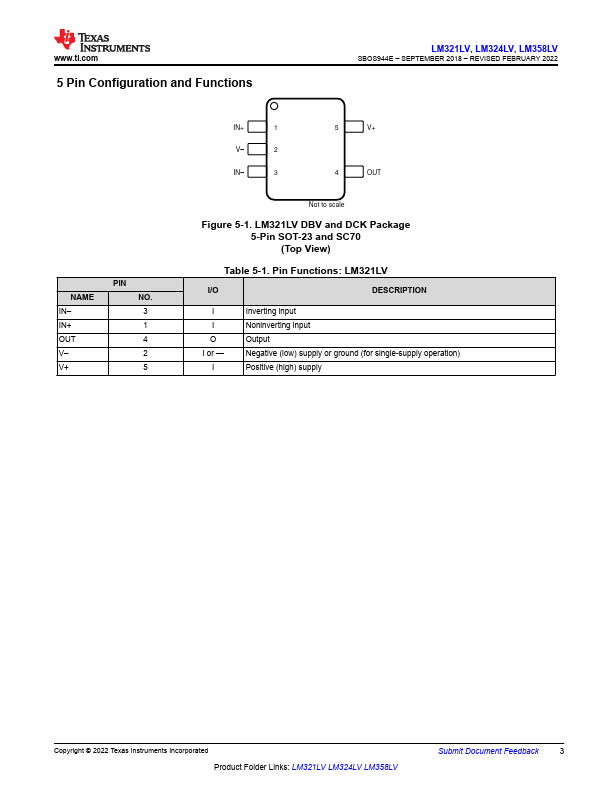

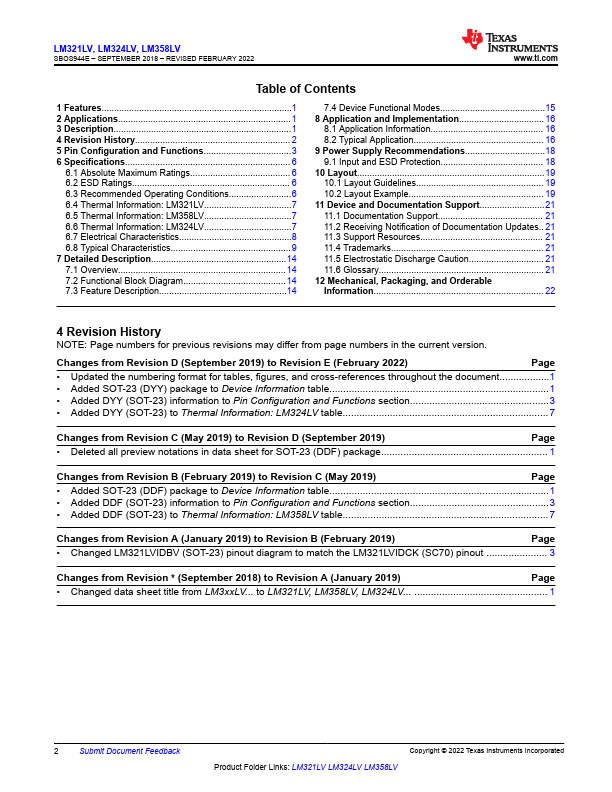

Additional preview pages of the LM324LV datasheet.

LM324LV Product details

Description

The LM3xxLV family includes the single LM321LV, dual LM358LV, and quad LM324LV operational amplifiers, or op amps.

Features

Industry standard amplifier for cost-sensitive systems.
Low input offset voltage: ±1 mV.
Common-mode voltage range includes ground.
Unity-gain bandwidth: 1 MHz.
Low broadband noise: 40 nV/√Hz.
Low quiescent current: 90 µA/Ch.
Unity-gain stable.
Operational at supply voltages from 2.7 V to 5.5 V.
Offered in single, dual, and quad channel variants.
Robust ESD specification: 2-kV HBM.
Extended temper.
