LM3150MH, LM3150 - Wide-VIN Synchronous Buck Controller

Name: LM3150MH
SKU: LM3150MH-1471786

Texas Instruments

📥 Download Datasheet

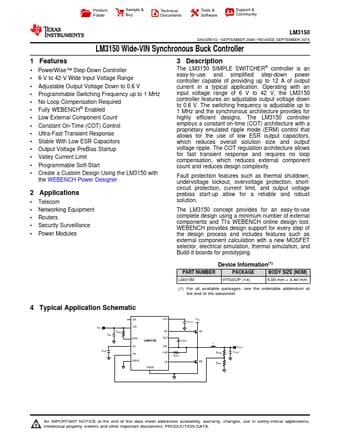

LM3150MH Datasheet Preview — This datasheet PDF includes multiple part numbers: LM3150MH, LM3150. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LM3150MH, LM3150
Manufacturer	Texas Instruments
File Size	1.20 MB
Description	Wide-VIN Synchronous Buck Controller
Datasheet	LM3150-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LM3150MH, LM3150. Please refer to the document for exact specifications by model.

LM3150MH Product details

Description

The LM3150 SIMPLE SWITCHER® controller is an easy-to-use and simplified step-down power controller capable of providing up to 12 A of output current in a typical application.

Features

1 PowerWise™ Step-Down Controller.
6-V to 42-V Wide Input Voltage Range.
Adjustable Output Voltage Down to 0.6 V.
Programmable Switching Frequency up to 1 MHz.
No Loop Compensation Required.
Fully.
