LM2907EP - Enhanced Plastic Frequency to Voltage Converter

Texas Instruments

The LM2907EP by Texas Instruments is a Enhanced Plastic Frequency to Voltage Converter. Below is the official datasheet preview.

📥 Download Datasheet

LM2907EP Enhanced Plastic Frequency to Voltage Converter by Texas Instruments - Datasheet Preview — Official preview page of the **LM2907EP** Enhanced Plastic Frequency to Voltage Converter datasheet (Texas Instruments).

Datasheet Details

Part number	LM2907EP
Manufacturer	Texas Instruments
File Size	1.36 MB
Description	Enhanced Plastic Frequency to Voltage Converter
Datasheet	LM2907EP-etcTI.pdf

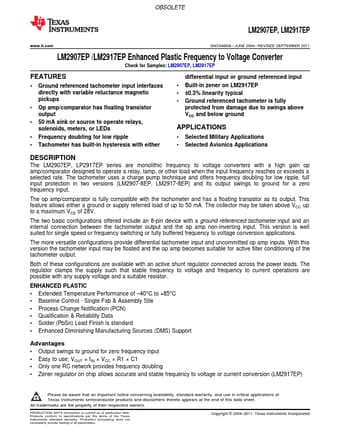

Additional preview pages of the LM2907EP datasheet.

LM2907EP Product details

Description

The LM2907EP, LP2917EP series are monolithic frequency to voltage converters with a high gain op amp/comparator designed to operate a relay, lamp, or other load when the input frequency reaches or exceeds a selected rate.

Features

1.
2 Ground referenced tachometer input interfaces directly with variable reluctance magnetic pickups.
Op amp/comparator has floating transistor output.
50 mA sink or source to operate relays, solenoids, meters, or LEDs.
Frequency doubling for low ripple.
Tachometer has built-in hysteresis with either differential input or ground referenced input.
Built-in zener on LM2917EP.
±0.3% linearity typical.
Ground referenced tachome.
