LM27951 - white-LED Driver

Description

The LM27951 is a switched capacitor white-LED driver capable of driving up to four LEDs with 30 mA through each LED.

Its four tightly regulated current sources ensure excellent LED current and brightness matching.

LED drive current is programmed by an external sense resistor.

Features

  • 1 Input Voltage Range: 2.8 V to 5.5 V.
  • Drives up to Four LEDs With up to 30 mA each.
  • Regulated Current Sources with 0.2% (Typical) Matching.
  • 3/2×, 1× Gain Transition Based on LED Vƒ.
  • Peak Efficiency Over 85%.
  • PWM Brightness Control.
  • Very Small Solution Size - No Inductor.
  • Fixed 750-kHz Switching Frequency.
  • < 1-µA Shutdown Current 2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LM27951 White LED Adaptive 1.5X/1X Switched Capacitor Current Driver National Semiconductor
LM27952 White LED Adaptive 1.5X/1X Switched Capacitor Current Driver National Semiconductor
LM27953 White LED Driver National Semiconductor
LM2791 Current Regulated Switched Capacitor LED Driver National Semiconductor
LM2792 Current Regulated Switched Capacitor LED Driver National Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
LM2795 Current Regulated Switched Capacitor LED Supply
LM27952 white-LED Driver
LM2794 Current Regulated Switched Capacitor LED Supply
LM2796 Dual-Display White LED Driver
LM27964 White LED Driver

Full PDF Text Transcription

Click to expand full text

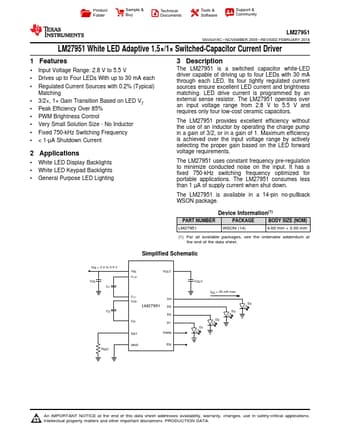

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM27951 SNVS416C – NOVEMBER 2005 – REVISED FEBRUARY 2016 LM27951 White LED Adaptive 1.5×/1× Switched-Capacitor Current Driver 1 Features •1 Input Voltage Range: 2.8 V to 5.5 V • Drives up to Four LEDs With up to 30 mA each • Regulated Current Sources with 0.
