LM2771 - Step-Down DC/DC Converter

Texas Instruments

The LM2771 by Texas Instruments is a Step-Down DC/DC Converter. Below is the official datasheet preview.

📥 Download Datasheet

LM2771 Step-Down DC/DC Converter by Texas Instruments - Datasheet Preview — Official preview page of the LM2771 Step-Down DC/DC Converter datasheet (Texas Instruments).

Datasheet Details

Part number	LM2771
Manufacturer	Texas Instruments
File Size	1.38 MB
Description	Step-Down DC/DC Converter
Datasheet	LM2771-etcTI.pdf

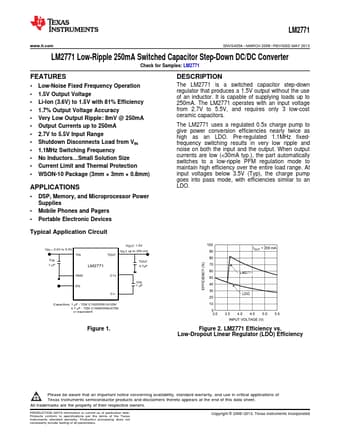

Additional preview pages of the LM2771 datasheet.

LM2771 Product details

Description

The LM2771 is a switched capacitor step-down regulator that produces a 1.5V output without the use of an inductor.

Features

1.
2 Low-Noise Fixed Frequency Operation.
1.5V Output Voltage.
Li-Ion (3.6V) to 1.5V with 81% Efficiency.
1.7% Output Voltage Accuracy.
Very Low Output Ripple: 8mV @ 250mA.
Output Currents up to 250mA.
2.7V to 5.5V Input Range.
Shutdown Disconnects Load from VIN.
1.1MHz Switching Frequency.
No Inductors…Small Solution Size.
Current Limit and Thermal Protection.
WSON-10 Package (3mm × 3mm ×.
