LM2676 - High Efficiency 3-A Step-Down Voltage Regulator

Texas Instruments

The LM2676 by Texas Instruments is a High Efficiency 3-A Step-Down Voltage Regulator. Below is the official datasheet preview.

📥 Download Datasheet

LM2676 High Efficiency 3-A Step-Down Voltage Regulator by Texas Instruments - Datasheet Preview — Official preview page of the **LM2676** High Efficiency 3-A Step-Down Voltage Regulator datasheet (Texas Instruments).

Datasheet Details

Part number	LM2676
Manufacturer	Texas Instruments
File Size	1.35 MB
Description	High Efficiency 3-A Step-Down Voltage Regulator
Datasheet	LM2676-etcTI.pdf

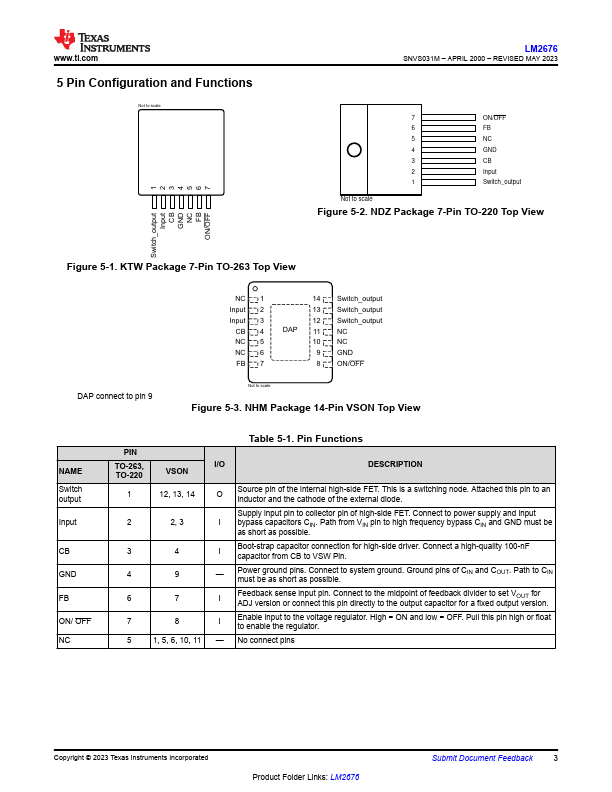

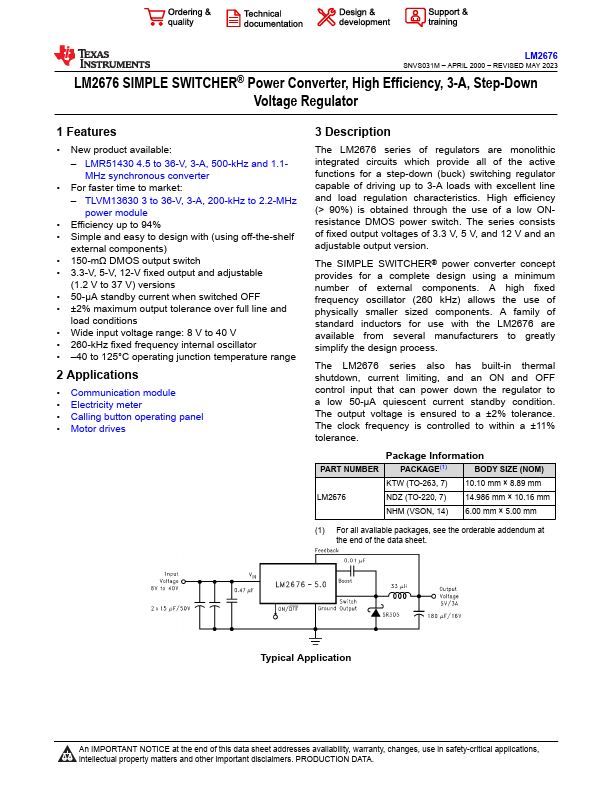

Additional preview pages of the LM2676 datasheet.

LM2676 Product details

Description

The LM2676 series of regulators are monolithic integrated circuits which provide all of the active functions for a step-down (buck) switching regulator capable of driving up to 3-A loads with excellent line and load regulation characteristics.

Features

New product available:.
LMR51430 4.5 to 36-V, 3-A, 500-kHz and 1.1MHz synchronous converter.
For faster time to market:.
TLVM13630 3 to 36-V, 3-A, 200-kHz to 2.2-MHz power module.
Efficiency up to 94%.
Simple and easy to design with (using off-the-shelf external components).
150-mΩ DMOS output switch.
3.3-V, 5-V, 12-V fixed output and adjustable (1.2 V to 37 V) versions.
50-µA standby current when switched OFF.
