LM258 - Industry-Standard Dual Operational Amplifiers

Texas Instruments

The LM258 by Texas Instruments is a Industry-Standard Dual Operational Amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

LM258 Industry-Standard Dual Operational Amplifiers by Texas Instruments - Datasheet Preview — Official preview page of the **LM258** Industry-Standard Dual Operational Amplifiers datasheet (Texas Instruments).

Datasheet Details

Part number	LM258
Manufacturer	Texas Instruments
File Size	3.88 MB
Description	Industry-Standard Dual Operational Amplifiers
Datasheet	LM258-etcTI.pdf

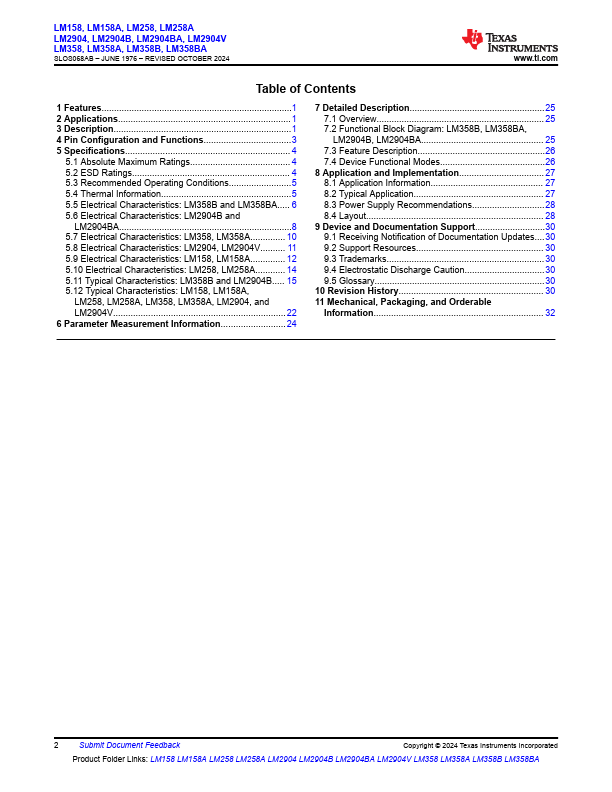

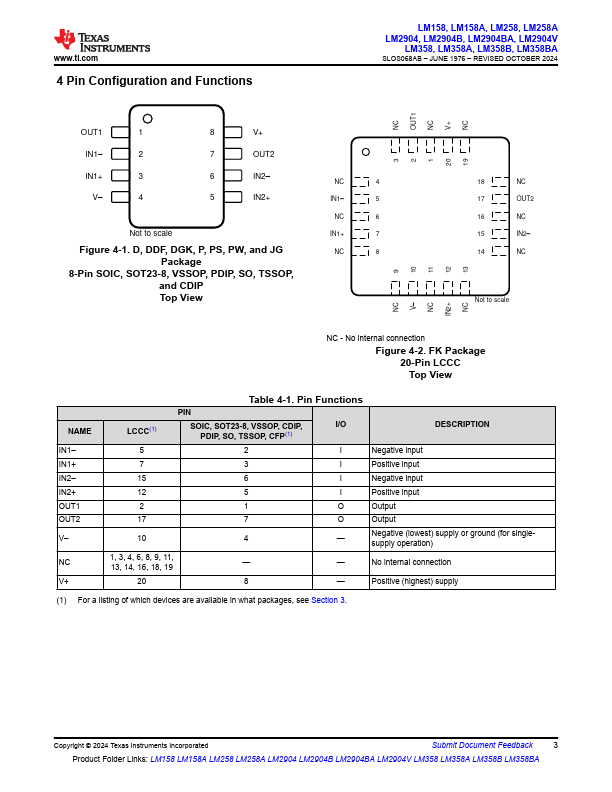

Additional preview pages of the LM258 datasheet.

LM258 Product details

Description

The LM358B and LM2904B devices are the next-generation versions of the industry-standard operational amplifiers (op amps) LM358 and LM2904, which include two high-voltage (36V) op amps.

Features

Wide supply range of 3V to 36V (B, BA versions).
Quiescent current: 300µA/ch (B, BA versions).
Unity-gain bandwidth of 1.2MHz (B, BA versions).
Common-mode input voltage range includes ground, enabling direct sensing near ground.
2mV input offset voltage maximum at 25°C (BA version).
3mV input offset voltage maximum at 25°C (A, B versions).
Internal RF and EMI filter (B, BA versions).
On products compliant to MIL-PRF-38535,.
