LM25085-Q1, LM25085 - 42V Constant On-Time PFET Buck Switching Controller

Name: LM25085-Q1
SKU: LM25085-Q1-1509888

Texas Instruments

📥 Download Datasheet

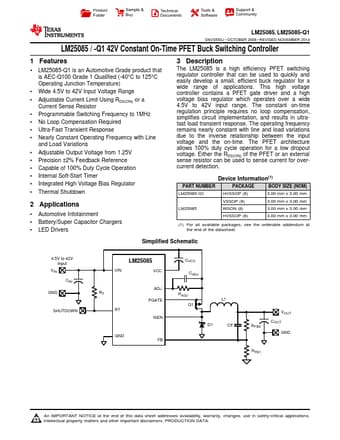

LM25085-Q1 Datasheet Preview — This datasheet PDF includes multiple part numbers: LM25085-Q1, LM25085. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LM25085-Q1, LM25085
Manufacturer	Texas Instruments
File Size	1.34 MB
Description	42V Constant On-Time PFET Buck Switching Controller
Datasheet	LM25085-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LM25085-Q1, LM25085. Please refer to the document for exact specifications by model.

LM25085-Q1 Product details

Description

The LM25085 is a high efficiency PFET switching regulator controller that can be used to quickly and easily develop a small, efficient buck regulator for a wide range of applications.

Features

1 LM25085-Q1 is an Automotive Grade product that is AEC-Q100 Grade 1 Qualified (-40°C to 125°C Operating Junction Temperature).
Wide 4.5V to 42V Input Voltage Range.
Adjustable Current Limit Using RDS(ON) or a Current Sense Resistor.
Programmable Switching Frequency to 1MHz.
No Loop Compensation Required.
Ultra-Fast Transient Response.
Nearly Constant Operating Frequency with Line and Load Variations.
Adjustable Output Volta.
