LM139JAN - Low Power Low Offset Voltage Quad Comparators

Name: LM139JAN
SKU: LM139JAN-1503055

Texas Instruments

📥 Download Datasheet

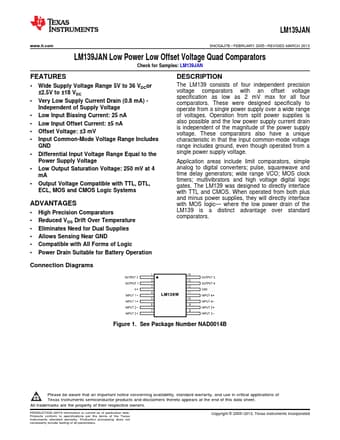

LM139JAN Datasheet Preview — Preview of LM139JAN PDF

Datasheet Details

Part number	LM139JAN
Manufacturer	Texas Instruments
File Size	886.90 KB
Description	Low Power Low Offset Voltage Quad Comparators
Datasheet	LM139JAN-etcTI.pdf

LM139JAN Product details

Description

The LM139 consists of four independent precision voltage comparators with an offset voltage specification as low as 2 mV max for all four comparators.

Features

1.
2 Wide Supply Voltage Range 5V to 36 VDCor ±2.5V to ±18 VDC.
Very Low Supply Current Drain (0.8 mA) Independent of Supply Voltage.
Low Input Biasing Current: 25 nA.
Low Input Offset Current: ±5 nA.
Offset Voltage: ±3 mV.
Input Common-Mode Voltage Range Includes GND.
Differential Input Voltage Range Equal to the Power Supply Voltage.
Low Output Saturation Voltage: 250 mV at 4 mA.
Output Voltage Compatible with TTL,.
