ISO7340-Q1 - Quad-Channel Digital Isolators

Description

The ISO734x-Q1 family of devices provides galvanic isolation up to 3000 VRMS for 1 minute per UL 1577 and 4242 VPK per VDE V 0884-10.

These devices have four isolated channels comprised of logic input and output buffers separated by a silicon dioxide (SiO2) insulation barrier.

Features

  • 1 Qualified for Automotive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ISO-1001 0-+/-10VDC or 0-5V AC Signal Converter YUAN
ISO-200RMS-P2-O8 200mV AC or DC Small Signal Conversion YUAN
ISO-A1-Px-Ox Dual Isolated Transmitter Shenzhen Sunyuan
ISO-A2-Px-Ox Dual Isolated Transmitter Shenzhen Sunyuan
ISO-A3-Px-Ox Dual Isolated Transmitter Shenzhen Sunyuan

Other Datasheets by Texas Instruments

Part Number Description
ISO7340C Quad-Channel Digital Isolators
ISO7340FC Quad-Channel Digital Isolators
ISO7341-Q1 Quad-Channel Digital Isolators
ISO7341C Quad-Channel Digital Isolators
ISO7341FC Quad-Channel Digital Isolators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

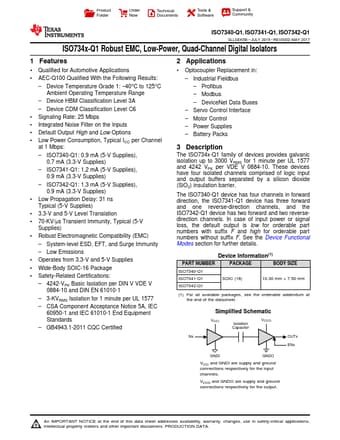

Product Folder Order Now Technical Documents Tools & Software Support & Community ISO7340-Q1, ISO7341-Q1, ISO7342-Q1 SLLSEK5B – JULY 2015 – REVISED MAY 2017 ISO734x-Q1 Robust EMC, Low-Power, Quad-Channel Digital Isolators 1 Features •1 Qualified for Automotive Applications • AEC-Q100 Qualified With the Following Results: – Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range – Device HBM Classification Level 3A – Device CDM Classification Level C6 • Signaling Rate: 25 Mbps • Integrated Noise Filter on the Inputs • Default Output High and Low Options • Low Power Consumption, Typical ICC per Channel at 1 Mbps: – ISO7340-Q1: 0.9 mA (5-V Supplies), 0.7 mA (3.3-V Supplies) – ISO7341-Q1: 1.2 mA (5-V Supplies), 0.9 mA (3.3-V Supplies) – ISO7342-Q1: 1.
