ISO15M - 3.3-V Half- and Full-Duplex RS-485 Transceivers

Download the ISO15M datasheet PDF. This datasheet also covers the ISO15 variant, as both devices belong to the same 3.3-v half- and full-duplex rs-485 transceivers family and are provided as variant models within a single manufacturer datasheet.

Description

The ISO15 is an isolated half-duplex differential line transceiver while the ISO35 is an isolated full-duplex differential line driver and receiver for TIA/EIA 485/422 applications.

55°C to 125°C while the ISO15 and ISO35 ar

Features

  • 1 Meets or Exceeds TIA/EIA RS-485 Requirements.
  • 1/8 Unit Load.
  • Up to 256 Nodes on a Bus.
  • Signaling Rates up to 1 Mbps.
  • Thermal Shutdown Protection.
  • Low Bus Capacitance.
  • 16 pF (Typical).
  • 50 kV/μs Typical Transient Immunity.
  • Fail-safe Receiver for Bus Open, Short, Idle.
  • 3.3-V Inputs are 5-V Tolerant.
  • Safety and Regulatory Approvals.
  • 4000-VPK VIOTM, 560-VPK VIORM per DIN V VDE V 0884-10 (VDE.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ISO15-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
ISO150 Dual/ Isolated/ Bi-Directional DIGITAL COUPLER Burr-Brown Corporation
ISO15170 Connectors ITT
ISO100 Optically-Coupled Linear ISOLATION AMPLIFIER Burr-Brown Corporation
ISO1002 Small Signal Amplifier YUAN
ISO1003-xx-x Two Wires 4-20mA Isolated Signal Transmitter YUAN

Other Datasheets by Texas Instruments

Part Number Description
ISO15 3.3-V Half- and Full-Duplex RS-485 Transceivers
ISO1500 RS-485/RS-422 Transceiver
ISO1540 Low-Power Bidirectional I2C Isolators
ISO1540-Q1 Low-Power Bidirectional I2C Isolators
ISO1541 Low-Power Bidirectional I2C Isolators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

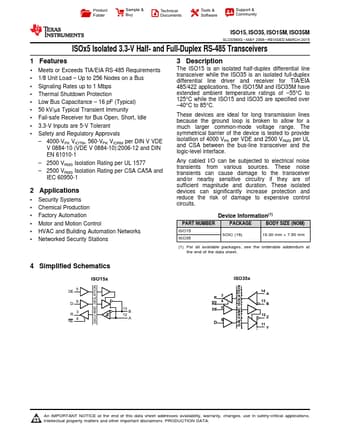

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ISO15, ISO35, ISO15M, ISO35M SLOS580G – MAY 2008 – REVISED MARCH 2015 ISOx5 Isolated 3.3-V Half- and Full-Duplex RS-485 Transceivers 1 Features •1 Meets or Exceeds TIA/EIA RS-485 Requirements • 1/8 Unit Load – Up to 256 Nodes on a Bus • Signaling Rates up to 1 Mbps • Thermal Shutdown Protection • Low Bus Capacitance – 16 pF (Typical) • 50 kV/μs Typical Transient Immunity • Fail-safe Receiver for Bus Open, Short, Idle • 3.
