ISO15 - 3.3-V Half- and Full-Duplex RS-485 Transceivers

Texas Instruments

📥 Download Datasheet

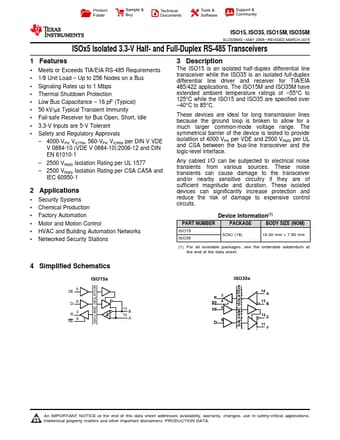

ISO15 Datasheet Preview — Preview of ISO15 PDF

Datasheet Details

Part number	ISO15
Manufacturer	Texas Instruments
File Size	1.76 MB
Description	3.3-V Half- and Full-Duplex RS-485 Transceivers
Datasheet	ISO15-etcTI.pdf

ISO15 Product details

Description

The ISO15 is an isolated half-duplex differential line transceiver while the ISO35 is an isolated full-duplex differential line driver and receiver for TIA/EIA 485/422 applications. 55°C to 125°C while the ISO15 and ISO35 are specified over 40°C to 85°C.

Features

1 Meets or Exceeds TIA/EIA RS-485 Requirements.
1/8 Unit Load.
Up to 256 Nodes on a Bus.
Signaling Rates up to 1 Mbps.
Thermal Shutdown Protection.
Low Bus Capacitance.
16 pF (Typical).
50 kV/μs Typical Transient Immunity.
Fail-safe Receiver for Bus Open, Short, Idle.
3.3-V Inputs are 5-V Tolerant.
Safety and Regulatory Approvals.
4000-VPK VIOTM, 560-VPK VIORM per DIN V VDE V 0884-10 (VDE.
