INA828 - Precision Instrumentation Amplifier

Description

The INA828 is a high-precision instrumentation amplifier that offers low power consumption and operates over a very wide single- or dual-supply range.

A single external resistor sets any gain from 1 to 1000.

Features

  • 1 Precision Instrumentation Amplifier Evolution:.
  • Second Generation: INA828.
  • First Generation: INA128.
  • Low Offset Voltage: 50 µV, MAX.
  • Gain Drift: 5 ppm/°C (G = 1), 50 ppm/°C (G > 1).
  • Noise: 7 nV/√Hz.
  • Bandwidth: 2 MHz (G = 1), 260 kHz (G = 100).
  • Stable with 1-nF Capacitive Loads.
  • Inputs Protected Up to ±40 V.
  • Common-Mode Rejection:.
  • 110 dB, MIN (G = 10).
  • Power-Supply Rejection: 100 dB, MIN.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
INA84C030 TV Microcontroller IK Semiconductor
INA84C068 TV Microcontroller IK Semiconductor
INA84C640 TV Microcontroller IK Semiconductor
INA84C641 TV Microcontroller IK Semiconductor
INA8583N Clock Calendar IK Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
INA821 Precision Instrumentation Amplifier
INA823 Wide-Supply Instrumentation Amplifier
INA826 Instrumentation Amplifier
INA827 Instrumentation Amplifier
INA818 Precision Instrumentation Amplifier

Full PDF Text Transcription

Click to expand full text

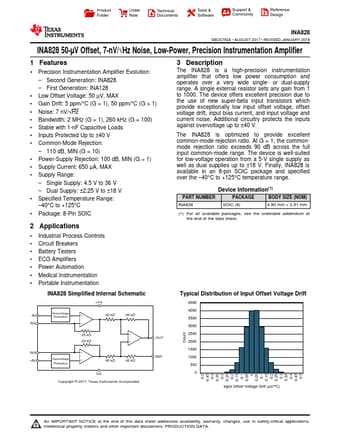

Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design INA828 SBOS792A – AUGUST 2017 – REVISED JANUARY 2018 INA828 50-µV Offset, 7-nV/√Hz Noise, Low-Power, Precision Instrumentation Amplifier 1 Features •1 Precision Instrumentation Amplifier Evolution: – Second Generation: INA828 – First Generation: INA128 • Low Offset Voltage: 50 µV, MAX • Gain Drift: 5 ppm/°C (G = 1), 50 ppm/°C (G > 1) • Noise: 7 nV/√Hz • Bandwidth: 2 MHz (G = 1), 260 kHz (G = 100) • Stable with 1-nF Capacitive Loads • Inputs Protected Up to ±40 V • Common-Mode Rejection: – 110 dB, MIN (G = 10) • Power-Supply Rejection: 100 dB, MIN (G = 1) • Supply Current: 650 µA, MAX • Supply Range: – Single Supply: 4.5 V to 36 V – Dual Supply: ±2.
