INA290-Q1 - Ultra-Precise Current Sense Amplifier

Description

The INA290-Q1 is an ultra-precise current sense amplifier that can measure voltage drops across shunt resistors over a wide common-mode range from 2.7 V to 120 V.

It is in a highly space-efficient SC-70 package with a PCB footprint of only 2.0 mm × 2.1 mm.

Features

  • AEC-Q100 qualified for automotive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
INA200 (INA200 - INA202) High-Side Measurement Current-Shunt Monitor Burr-Brown
INA201 (INA200 - INA202) High-Side Measurement Current-Shunt Monitor Burr-Brown
INA202 High-Side Measurement Current-Shunt Monitor Burr-Brown
INA203 (INA203 - INA205) Unidirectional Measurement Current-Shunt Monitor Burr-Brown
INA204 (INA203 - INA205) Unidirectional Measurement Current-Shunt Monitor Burr-Brown

Other Datasheets by Texas Instruments

Part Number Description
INA290 Ultra-Precise Current-Sense Amplifier
INA293 High-Precision Current Sense Amplifier
INA296A-Q1 Ultra-Precise Current Sense Amplifier
INA296V-Q1 Ultra-Precise Current Sense Amplifier
INA200 High-Side Measurement Current-Shunt Monitor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

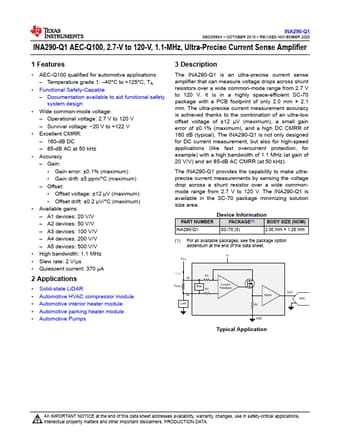

www.ti.com INA290-Q1 SBOS995A – OCTOBER 2019 – REVISED NOVINEMAB2E9R02-Q0210 SBOS995A – OCTOBER 2019 – REVISED NOVEMBER 2020 INA290-Q1 AEC-Q100, 2.7-V to 120-V, 1.1-MHz, Ultra-Precise Current Sense Amplifier 1 Features • AEC-Q100 qualified for automotive applications: – Temperature grade 1: –40°C to +125°C, TA • Functional Safety-Capable – Documentation available to aid functional safety system design • Wide common-mode voltage: – Operational voltage: 2.7 V to 120 V – Survival voltage: −20 V to +122 V • Excellent CMRR: – 160-dB DC – 85-dB AC at 50 kHz • Accuracy – Gain: • Gain error: ±0.1% (maximum) • Gain drift: ±5 ppm/°C (maximum) – Offset: • Offset voltage: ±12 µV (maximum) • Offset drift: ±0.
