INA200 High-Side Measurement Current-Shunt Monitor

INA200 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design INA200, INA201, INA202 SBOS374E * NOV.
The INA200, INA201, and INA202 devices are highside current-shunt monitors with voltage output and integrated comparator.

INA200 Features

* 1 Complete Current Sense Solution
* Three Gain Options Available:
* INA200 = 20 V/V
* INA201 = 50 V/V
* INA202 = 100 V/V
* 0.6-V Internal Voltage Reference
* Internal Open-Drain Comparator
* Latching Capability on Comparator

INA200 Applications

* Notebook Computers
* Cell Phones
* Telecom Equipment
* Automotive
* Power Management
* Battery Chargers

📥 Download Datasheet

Preview of INA200 PDF

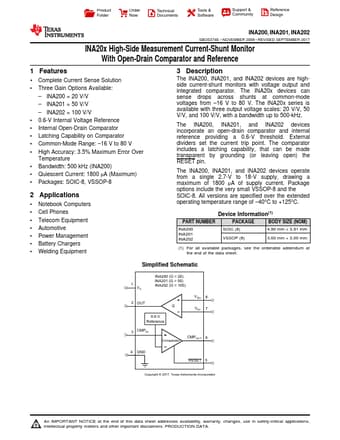

datasheet Preview Page 2 datasheet Preview Page 3
