DS90UB925Q-Q1 - 85MHz 24-Bit Color FPD-Link3 Serializer

Description

The DS90UB925Q-Q1 serializer, in conjunction with the DS90UB926Q-Q1 deserializer, provides a complete digital interface for concurrent transmission of high-speed video, audio, and control data for automotive display and image sensing applications.

Features

  • 1 Bidirectional Control Interface Channel Interface with I2C Compatible Serial Control Bus.
  • Supports High Definition (720 p) Digital Video Format.
  • RGB888 + VS, HS, DE and I2S Audio Supported.
  • Supports Two 10.
  • bit Camera Video Streams.
  • 5.
  • 85MHz PCLK Supported.
  • Single 3.3 V Operation with 1.8 V or 3.3 V Compatible LVCMOS I/O Interface.
  • AC-Coupled STP Interconnect Up to 10 Meters.
  • Parallel LVCMOS Video Inputs.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DS90UR124 DC-Balanced 24-Bit LVDS Serializer/Deserializer National Semiconductor
DS90UR124Q 5-43 MHz DC-Balanced 24-Bit FPD-Link Serializer/Deserializer National Semiconductor
DS90UR241 DC-Balanced 24-Bit LVDS Serializer/Deserializer National Semiconductor
DS90UR241Q 5-43 MHz DC-Balanced 24-Bit FPD-Link Serializer/Deserializer National Semiconductor
DS90UR905Q 5 - 65 MHz 24-bit Color FPD-Link Serializer/Deserializer National Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
DS90UB921-Q1 24-bit Color FPD-Link3 Serializer
DS90UB924-Q1 5-MHz to 96-MHz 24-bit Color FPD-Link3 to OpenLDI Deserializer
DS90UB926Q-Q1 24-Bit Color FPD-Link3 Deserializer
DS90UB927Q-Q1 5-MHz to 85-MHz 24-bit Color FPD-Link3 Serializer
DS90UB928Q-Q1 24-bit Color FPD-Link3 to FPD-Link Deserializer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

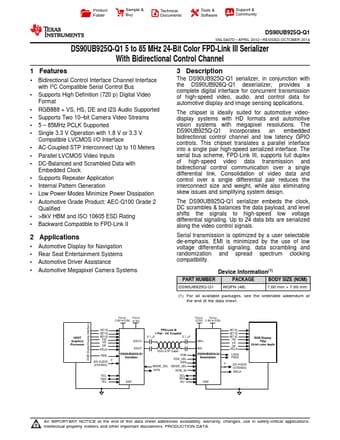

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DS90UB925Q-Q1 SNLS407D – APRIL 2012 – REVISED OCTOBER 2014 DS90UB925Q-Q1 5 to 85 MHz 24-Bit Color FPD-Link III Serializer With Bidirectional Control Channel 1 Features •1 Bidirectional Control Interface Channel Interface with I2C Compatible Serial Control Bus • Supports High Definition (720 p) Digital Video Format • RGB888 + VS, HS, DE and I2S Audio Supported • Supports Two 10–bit Camera Video Streams • 5 – 85MHz PCLK Supported • Single 3.3 V Operation with 1.8 V or 3.
