DS90UB921-Q1 - 24-bit Color FPD-Link3 Serializer

Description

The DS90UB921-Q1 serializer, in conjunction with a DS90UB922-Q1, DS90UB926Q-Q1, DS90UB928QQ1, DS90UB948-Q1, or DS90UB940-Q1 deserializer, provides a complete digital interface for concurrent transmission of high-speed video, audio, and control data for automotive display and image sensing applicatio

Features

  • 1 Qualified for Automotive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DS90UR124 DC-Balanced 24-Bit LVDS Serializer/Deserializer National Semiconductor
DS90UR124Q 5-43 MHz DC-Balanced 24-Bit FPD-Link Serializer/Deserializer National Semiconductor
DS90UR241 DC-Balanced 24-Bit LVDS Serializer/Deserializer National Semiconductor
DS90UR241Q 5-43 MHz DC-Balanced 24-Bit FPD-Link Serializer/Deserializer National Semiconductor
DS90UR905Q 5 - 65 MHz 24-bit Color FPD-Link Serializer/Deserializer National Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
DS90UB924-Q1 5-MHz to 96-MHz 24-bit Color FPD-Link3 to OpenLDI Deserializer
DS90UB925Q-Q1 85MHz 24-Bit Color FPD-Link3 Serializer
DS90UB926Q-Q1 24-Bit Color FPD-Link3 Deserializer
DS90UB927Q-Q1 5-MHz to 85-MHz 24-bit Color FPD-Link3 Serializer
DS90UB928Q-Q1 24-bit Color FPD-Link3 to FPD-Link Deserializer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

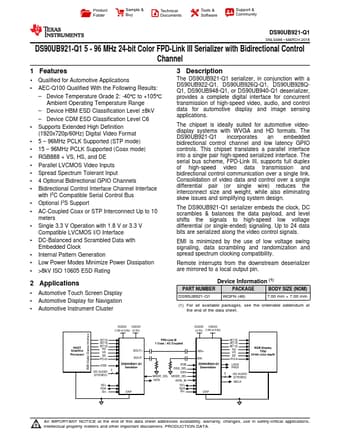

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DS90UB921-Q1 SNLS488 – MARCH 2016 DS90UB921-Q1 5 - 96 MHz 24-bit Color FPD-Link III Serializer with Bidirectional Control Channel 1 Features •1 Qualified for Automotive Applications • AEC-Q100 Qualified With the Following Results: – Device Temperature Grade 2: -40℃ to +105℃ Ambient Operating Temperature Range – Device HBM ESD Classification Level ±8kV – Device CDM ESD Classification Level C6 • Supports Extended High Definition (1920x720p/60Hz) Digital Video Format • 5 – 96MHz PCLK Supported (STP mode) • 15 – 96MHz PCLK Supported (Coax mode) • RGB888 + VS, HS, and DE • Parallel LVCMOS Video Inputs • Spread Spectrum Tolerant Input • 4 Optional Bidirectional GPIO Channels • Bidirectional Control Interfa
